CTSC-002810

CTSC-002810

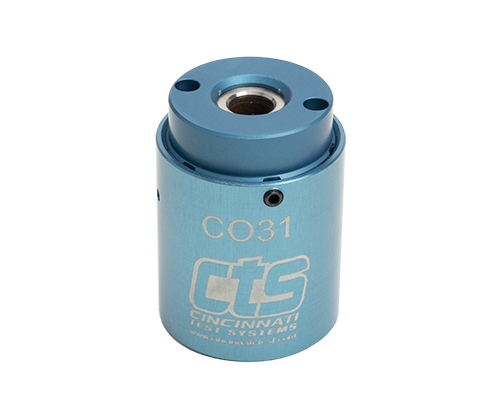

The CO31 pneumactically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting and is available with a sealing range from 0.100 to 0.510” (2.5 to 13 mm). Choose the correct incremental ranges for your application.

CTSConnect:CO31-AE
Seal & Product Type:OD Pneumatic Seal
Sealing Range: 0.34-0.42 in (8.6-10.7 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 500 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$375
/
