CTSC-001450

CTSC-001450

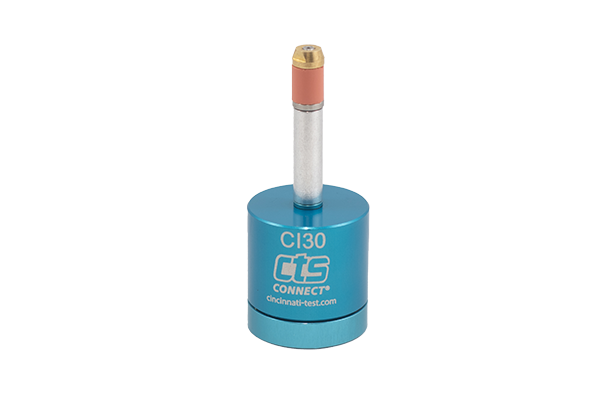

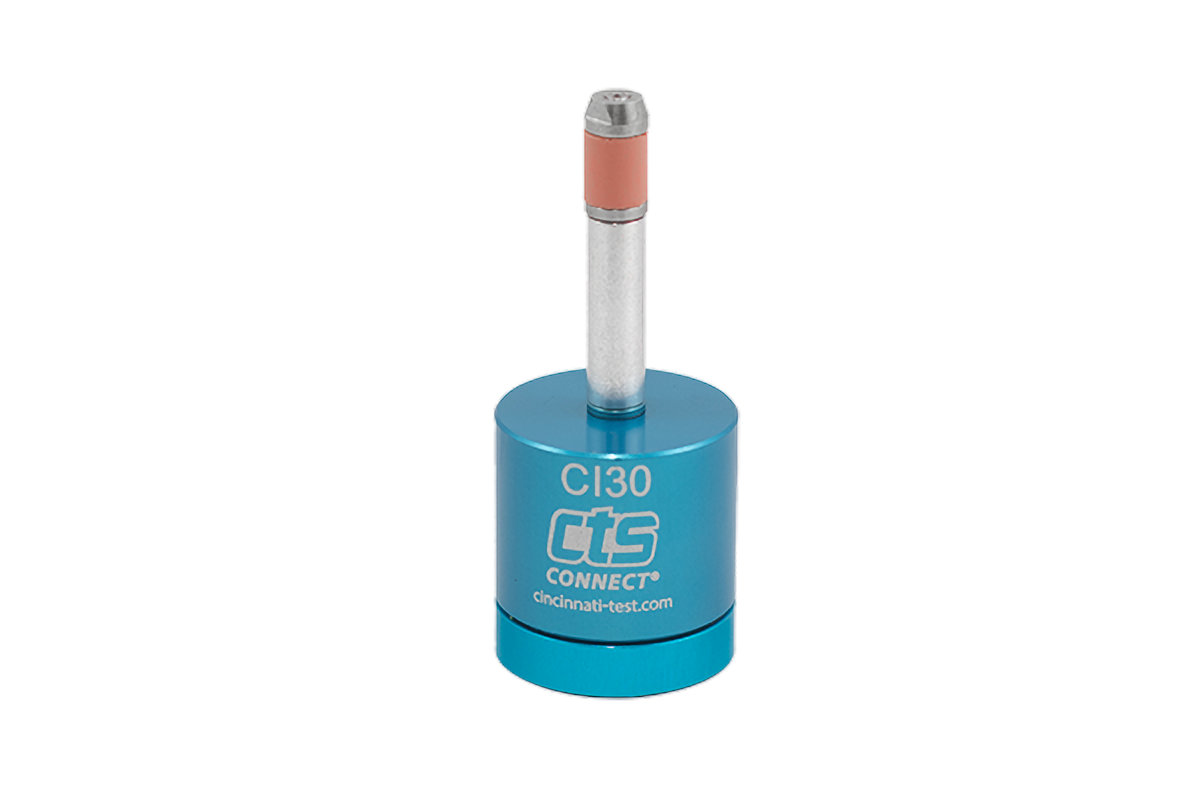

The CI30-A-E1.0 pneumatically actuated connector with a 1" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.290" to 0.310" (7.4 mm to 7.9 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI30-A-E1.0
Seal Range: 0.29-0.31 in. (7.4-7.9 mm)
Seal Type: 60 Durometer Silicone - Pink
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/16 in. NPT
Pilot Air Connection: 1/16 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$500
/
