CTSC-001481

CTSC-001481

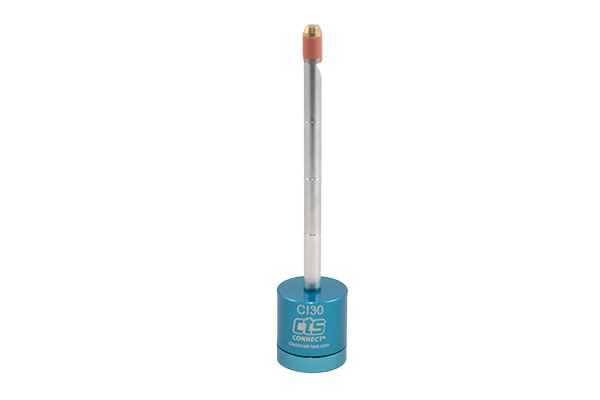

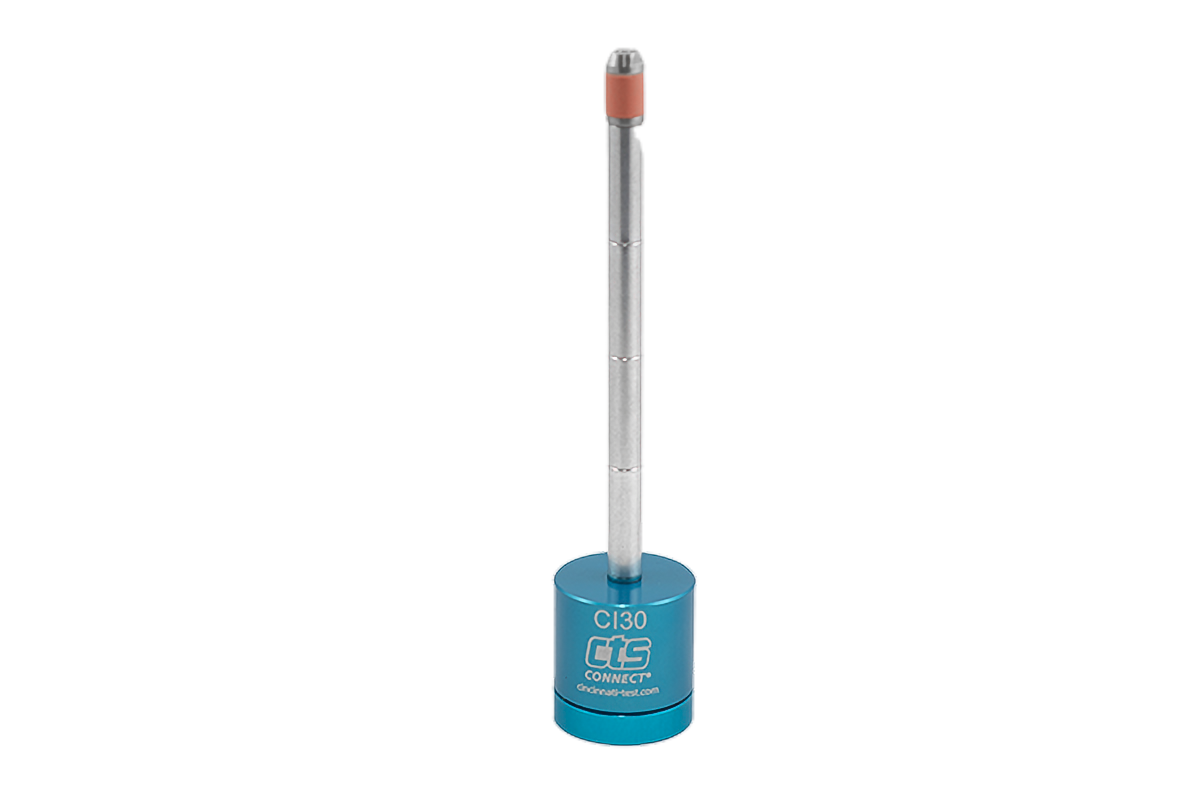

The CI30-AB-E4.0 pneumatically actuated connector with a 4" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.330" to 0.394" (8.4 mm to 10 mm).

CTSConnect:CI30-AB-E4.0
Seal & Product Type:4in. Extension - ID Pneumatic Seal
Sealing Range: 0.33-0.394 in. (8.4-10 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$680
/
