CTSC-001545

CTSC-001545

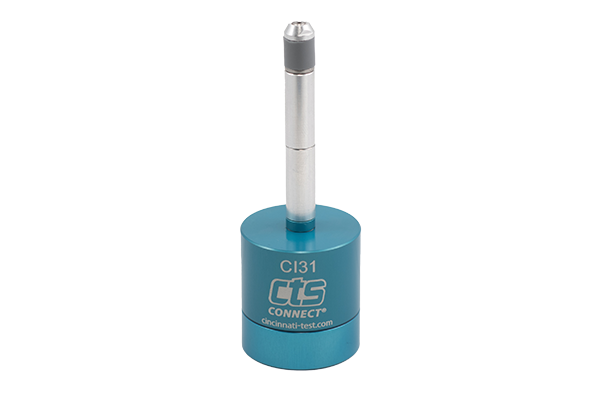

The CI31-AC-E2.0-M pneumatically actuated connector with a 2" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting in medical applications, offering a sealing range from 0.472" to 0.551" (12 mm to 14 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI31-AC-E2.0-M
Seal Range: 0.472-0.551 in. (12-14 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$665
/
