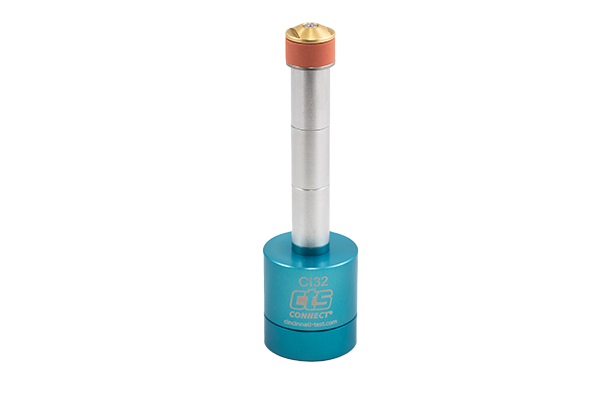

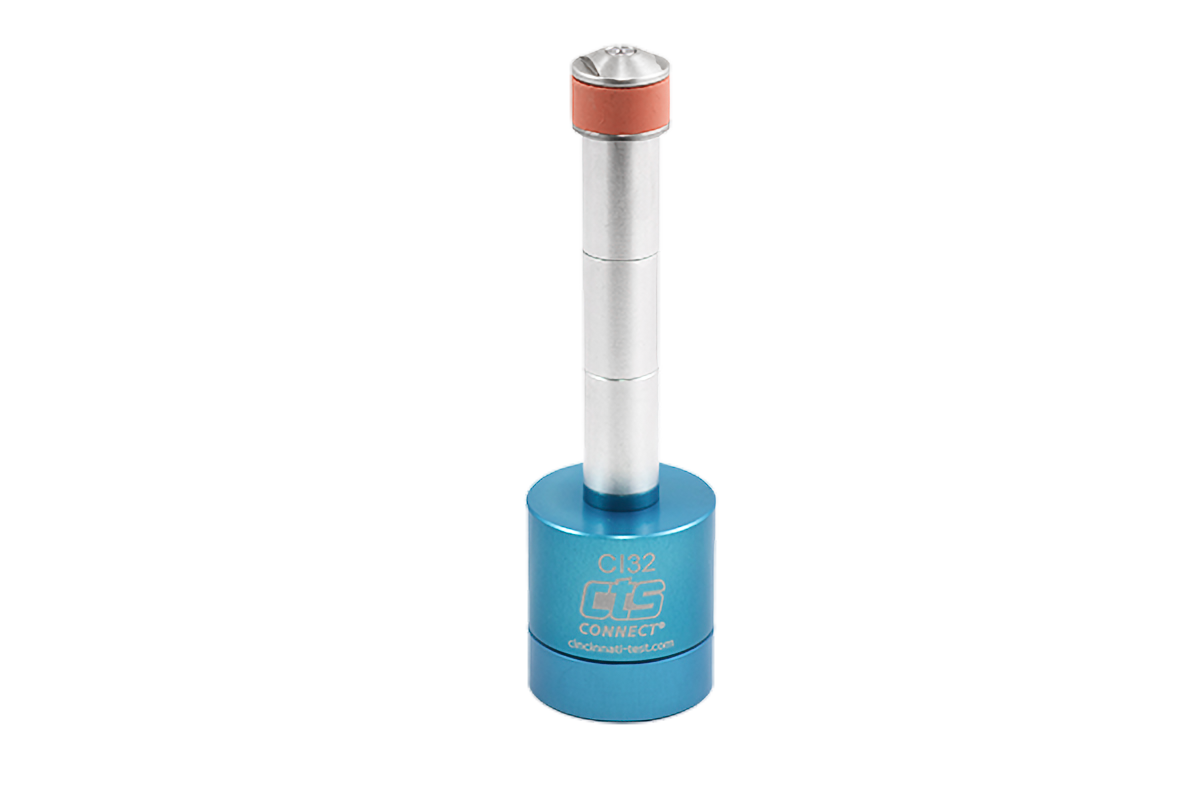

The CI32-AB-E3.0 pneumatically actuated connector with a 3" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.630" to 0.709" (16 mm to 18 mm).

CTSConnect:CI32-AB-E3.0
Seal & Product Type:3in. Extension - ID Pneumatic Seal
Sealing Range: 0.63-0.709 in. (16-18 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$780
/
