CTSC-001589

CTSC-001589

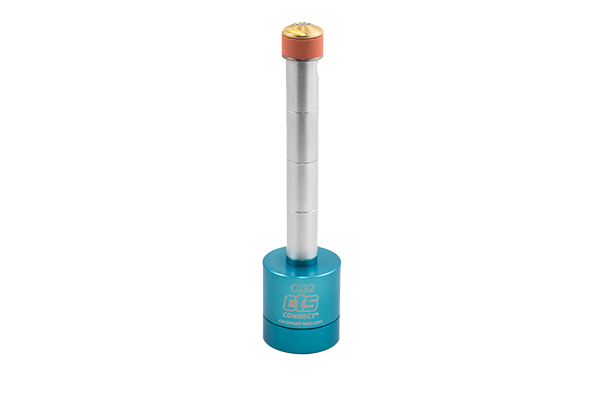

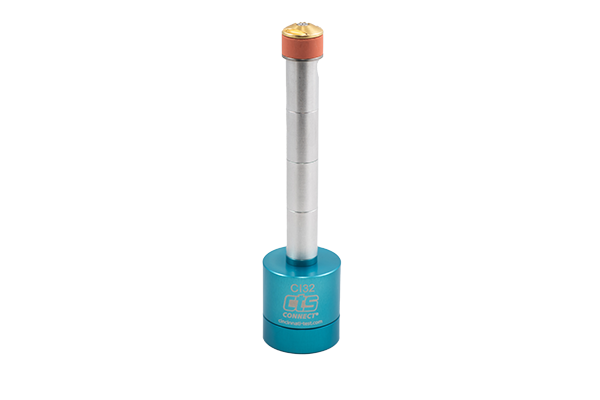

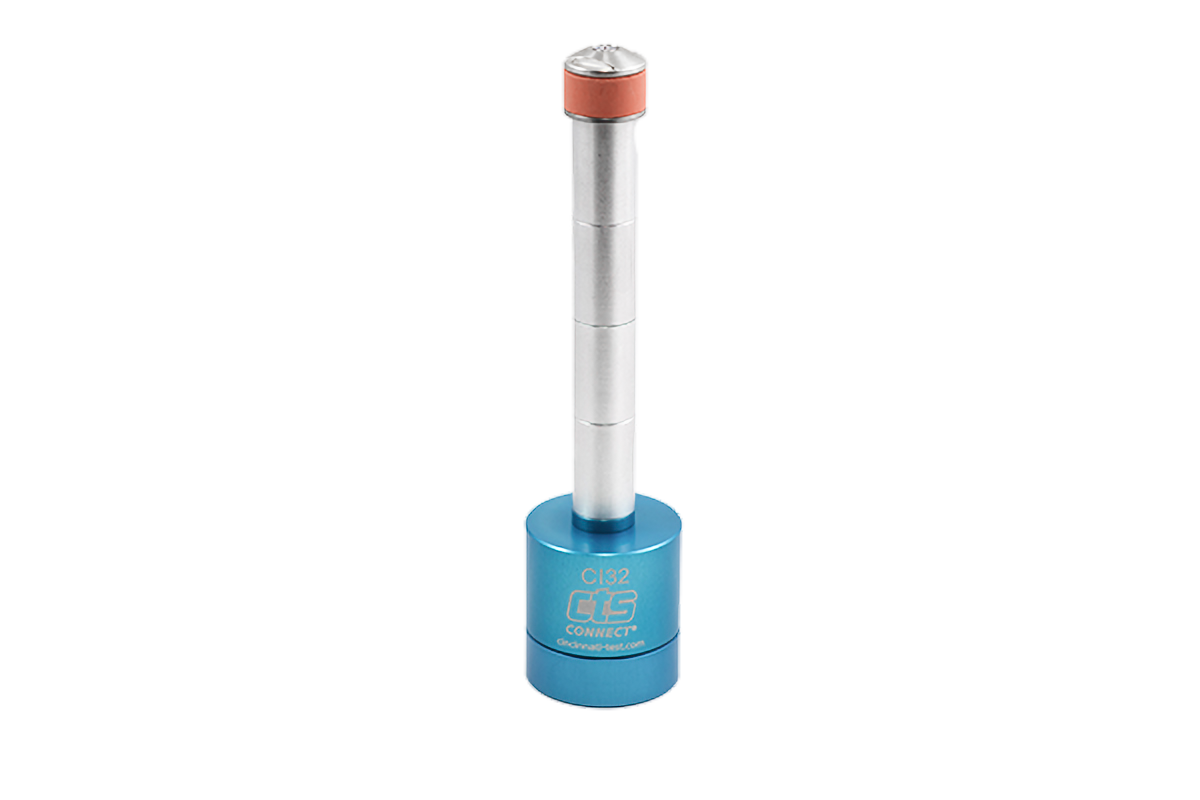

The CI32-AB-E4.0 pneumatically actuated connector with a 4" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.630" to 0.709" (16 mm to 18 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI32-AB-E4.0
Seal Range: 0.63-0.709 in. (16-18 mm)
Seal Type: 60 Durometer Silicone - Pink
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$870
/
