CTSC-001613

CTSC-001613

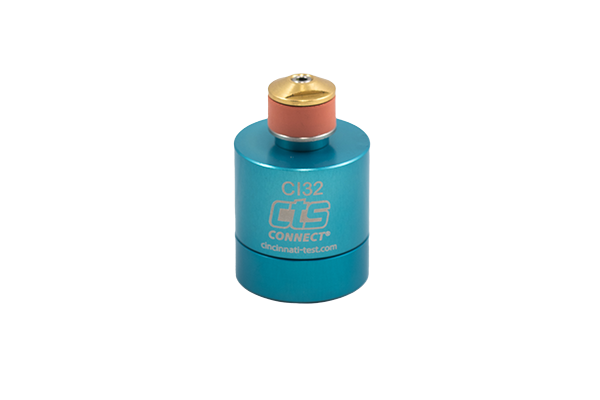

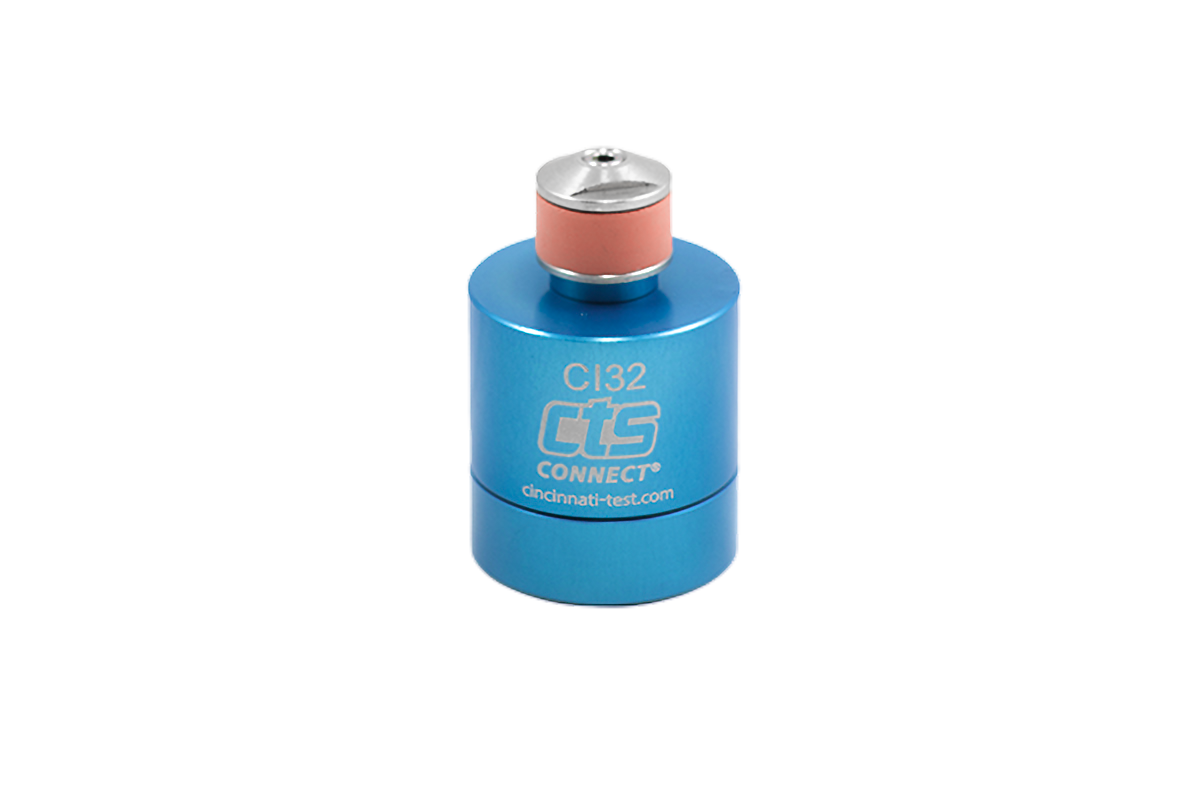

The CI32-AD pneumatically actuated connector is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.709" to 0.787" (18 mm to 20 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI32-AD
Seal Range: 0.709-0.787 in. (18-20 mm)
Seal Type: 60 Durometer Silicone - Pink
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$490
/
