CTSC-001615

CTSC-001615

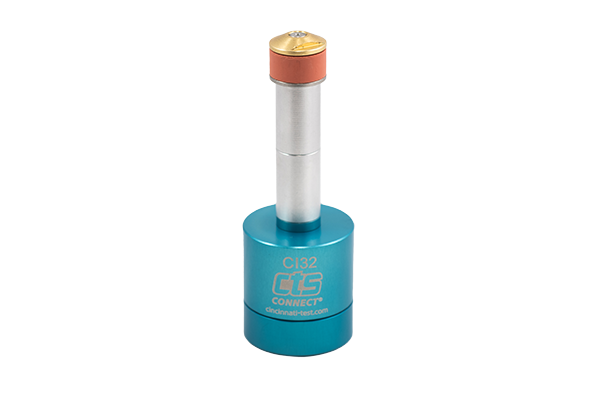

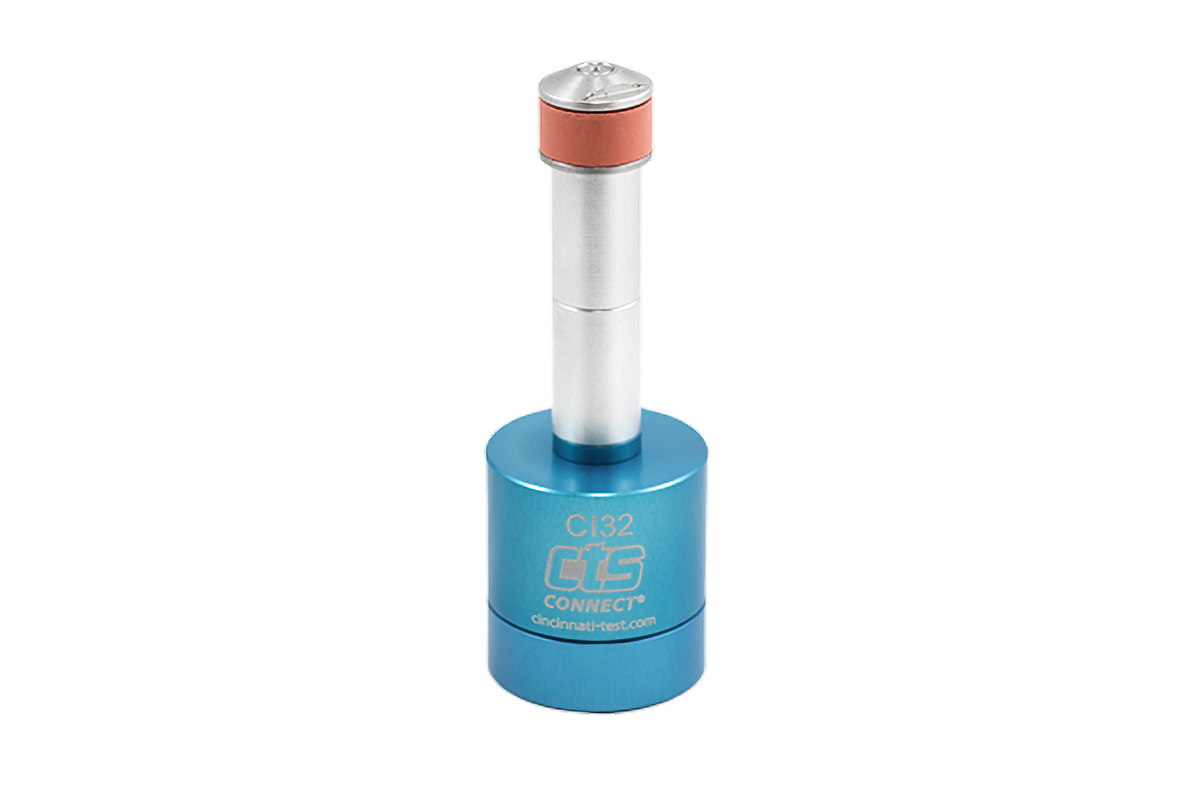

The CI32-AD-E2.0 pneumatically actuated connector with a 2" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.709" to 0.787" (18 mm to 20 mm).

CTSConnect:CI32-AD-E2.0
Seal & Product Type:2in. Extension - ID Pneumatic Seal
Sealing Range: 0.709-0.787 in. (18-20 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$720
/
