CTSC-001629

CTSC-001629

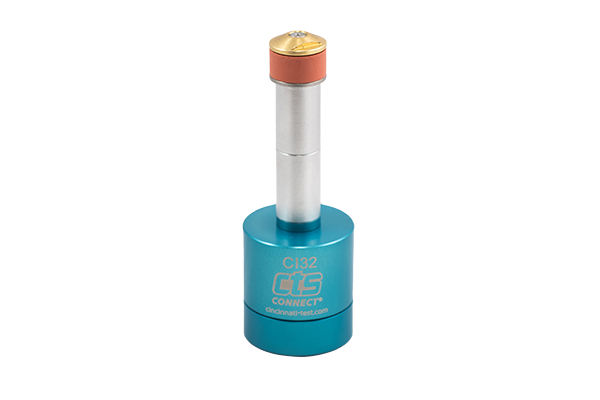

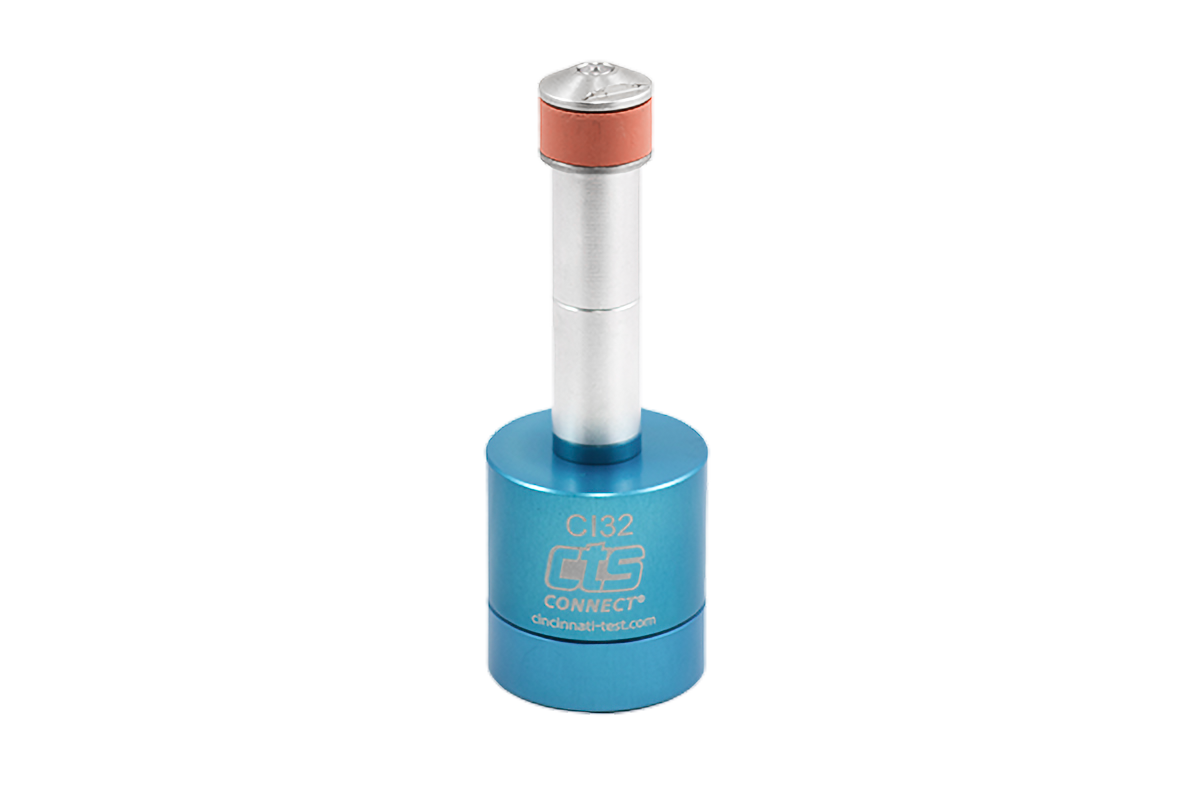

The CI32-AE-E2.0 pneumatically actuated connector with a 2" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.787" to 0.866" (20 mm to 22 mm).

CTSConnect:CI32-AE-E2.0
Seal & Product Type:2in. Extension - ID Pneumatic Seal
Sealing Range: 0.787-0.866 in. (20-22 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$720
/
