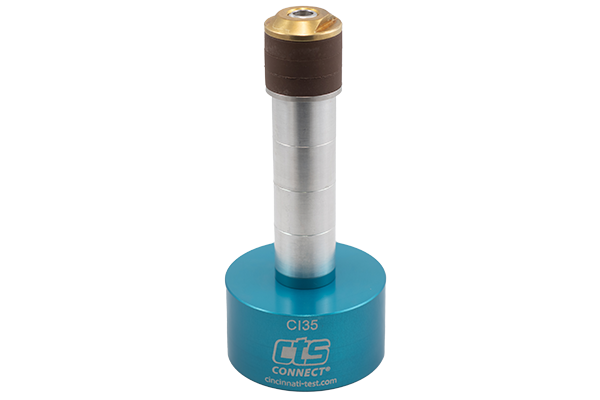

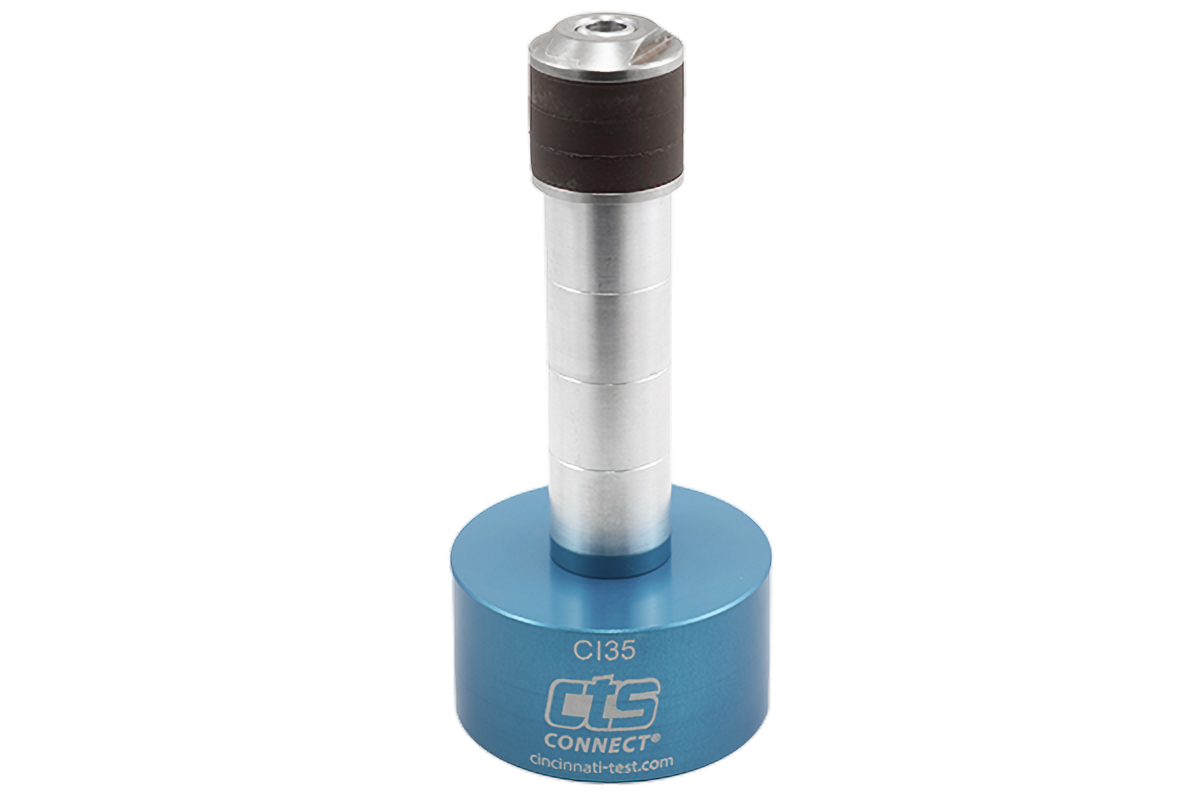

The CI35-AA-E4.0 pneumatically actuated connector with a 4" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 1.339" to 1.457" (34 mm to 37 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI35-AA-E4.0
Seal Range: 1.339-1.457 in. (34-37 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 1/2 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$1,240
/
