CTSC-001788

CTSC-001788

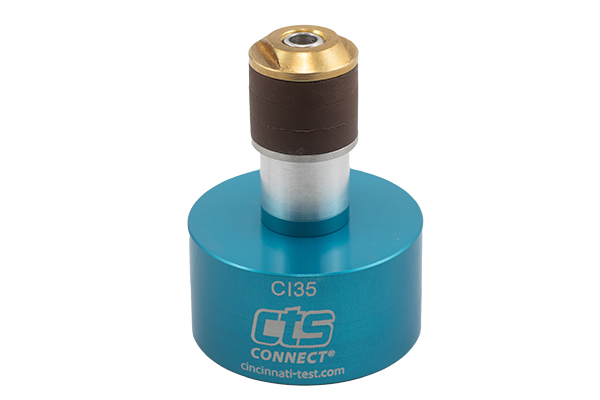

The CI35-AB-E1.0-M pneumatically actuated connector with a 1" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting in medical applications, offering a sealing range from 1.457" to 1.575" (37 mm to 40 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI35-AB-E1.0-M
Seal Range: 1.457-1.575 in. (37-40 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 1/2 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$940
/
