CTSC-001824

CTSC-001824

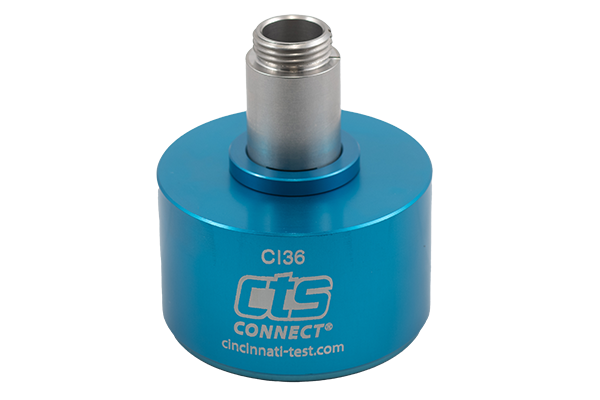

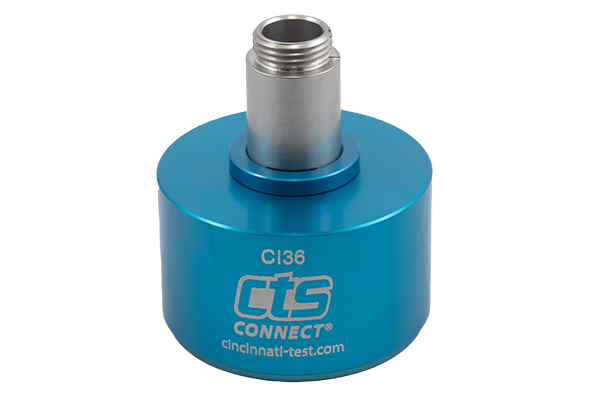

The CI36 Body Only (no main seal kit) is a pneumatically actuated connector designed to seal onto the inside diameter (ID) of a port, tube, or fitting and is available in a variety of sealing ranges from 1.693" to 2.165" (43 mm to 55 mm). Choose the correct main seal kit range for your application.

CTS Connect
Accessory: Body Only
Method: Pneumatic
Type: Inside Diameter
Body Size: CI36
Seal Range: 1.693-2.165 in. (43-55 mm)
Test Air Connection: 1/2 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum
Test pressure:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$520
/
