CTSC-001890

CTSC-001890

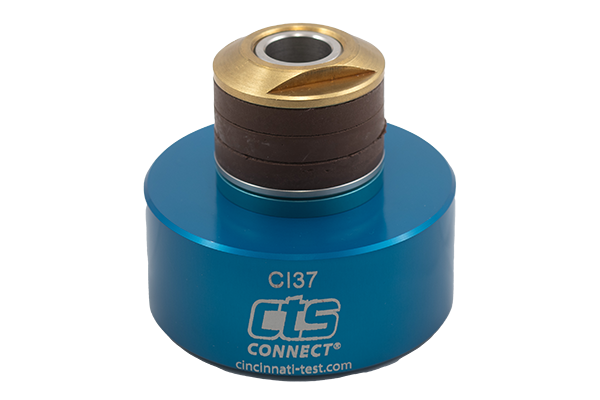

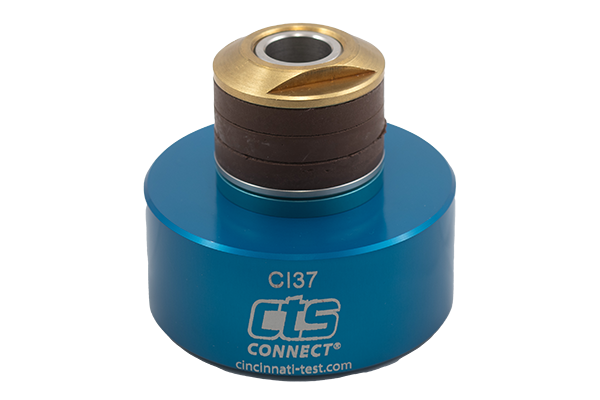

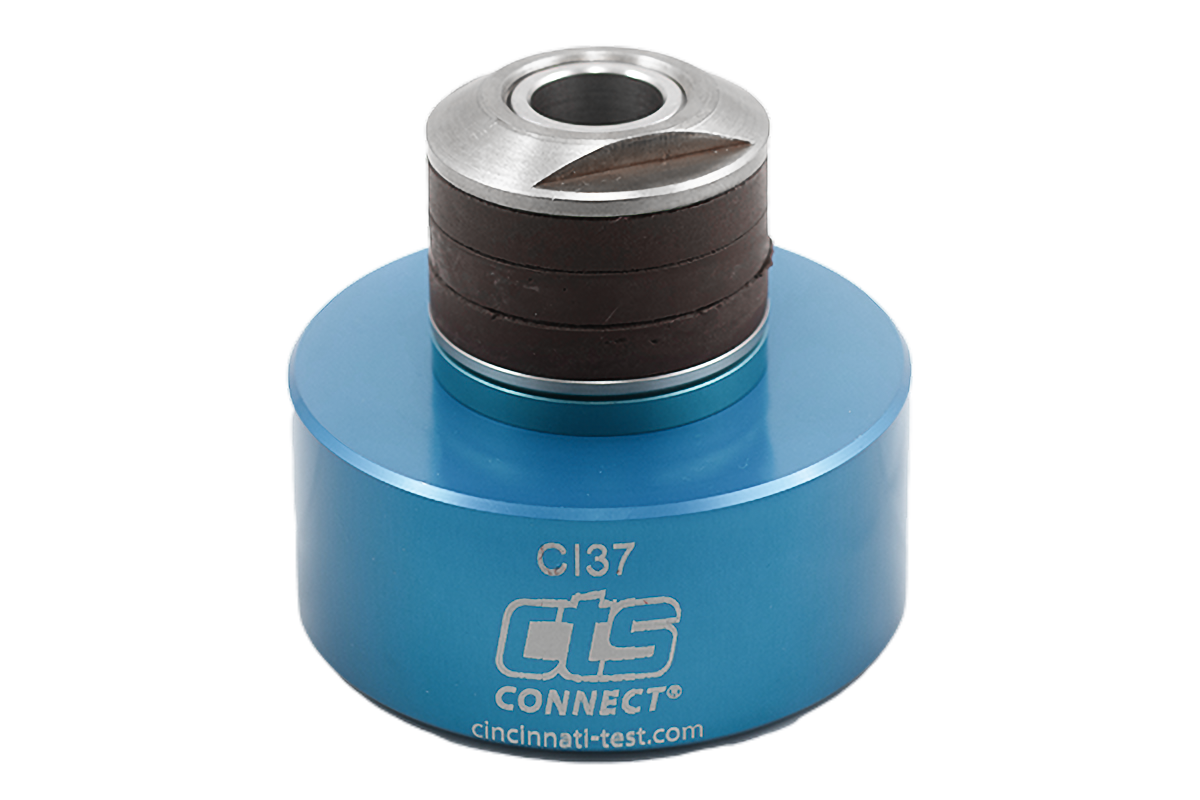

The CI37 pneumactically actuated connector is designed to seal into the inside diameter (ID) of a port, tube, or fitting and is available with a sealing range from 2.165 to 2.585” (55 to 65.7 mm). Choose the correct incremental ranges for your application.

CTSConnect:CI37-AA
Seal & Product Type:Std. Length - ID Pneumatic Seal
Sealing Range: 2.165-2.305 in (55-58.5 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$1,005
/
