CTSC-001892

CTSC-001892

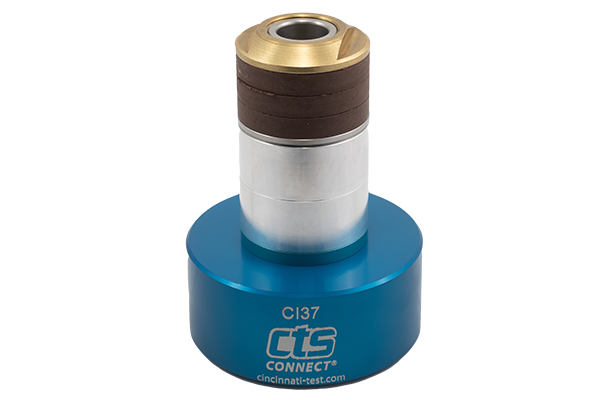

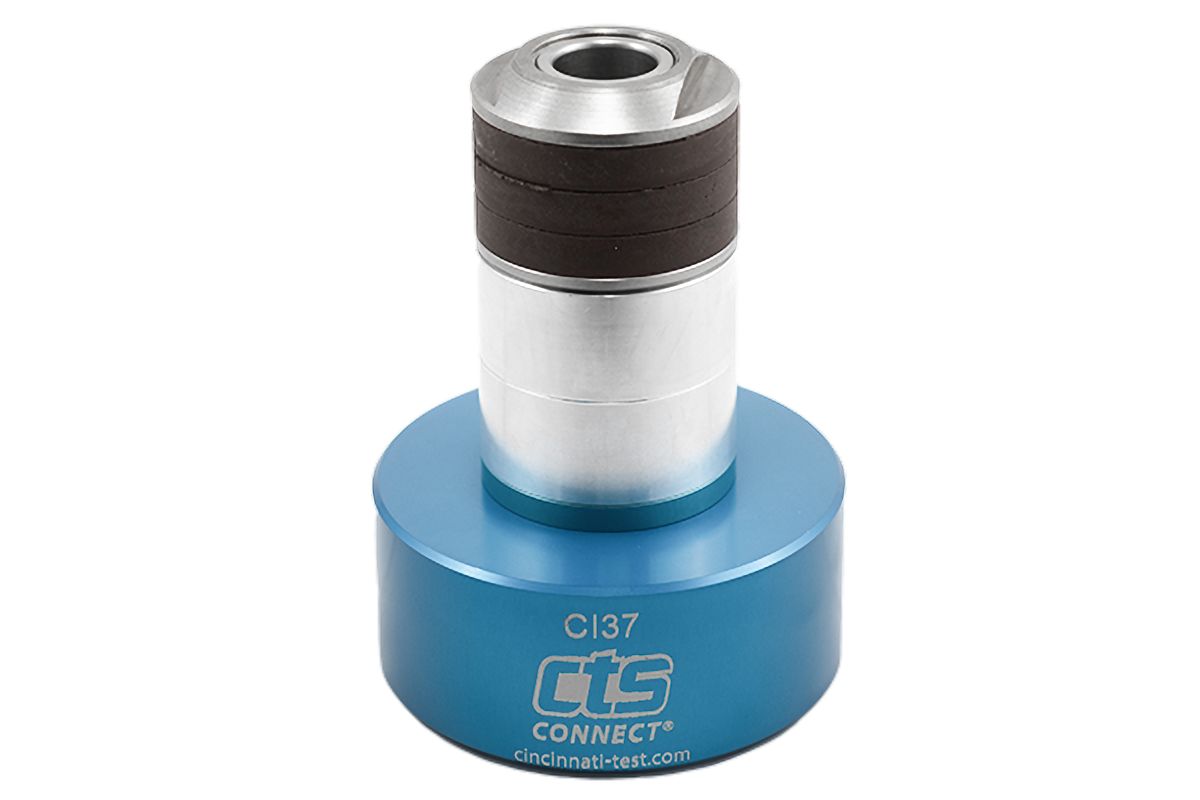

The CI37-AA-E2.0 pneumatically actuated connector with a 2" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 2.165" to 2.305" (55 mm to 58.5 mm).

CTSConnect:CI37-AA-E2.0
Seal & Product Type:2in. Extension - ID Pneumatic Seal
Sealing Range: 2.165-2.305 in. (55-58.5 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$1,385
/
