CTSC-001926

CTSC-001926

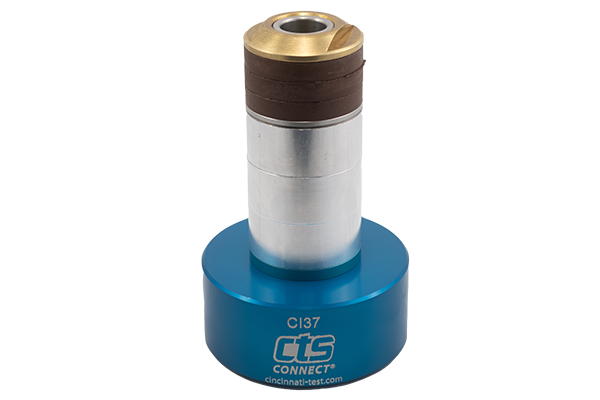

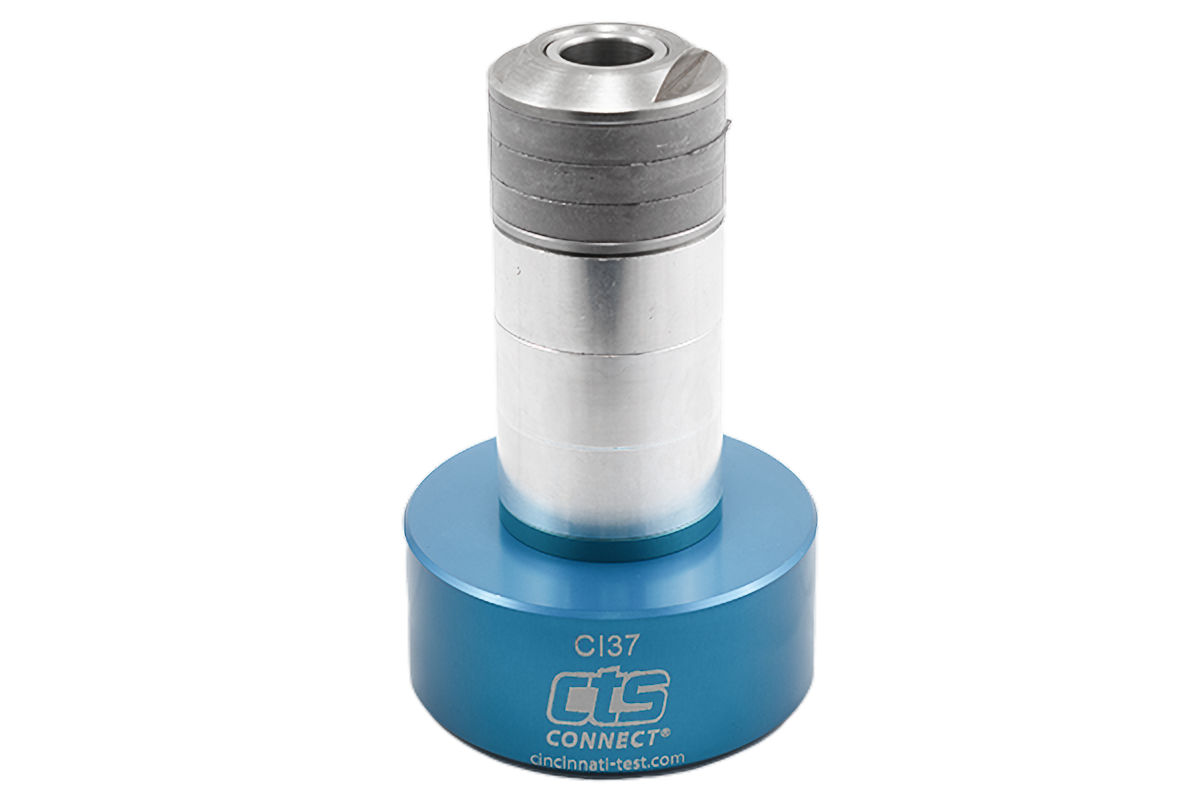

The CI37-AC-E3.0-M pneumatically actuated connector with a 3" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting in medical applications, offering a sealing range from 2.305" to 2.445" (58.5 mm to 62.1 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI37-AC-E3.0-M
Seal Range: 2.305-2.445 in. (58.5-62.1 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$1,495
/
