CTSC-001951

CTSC-001951

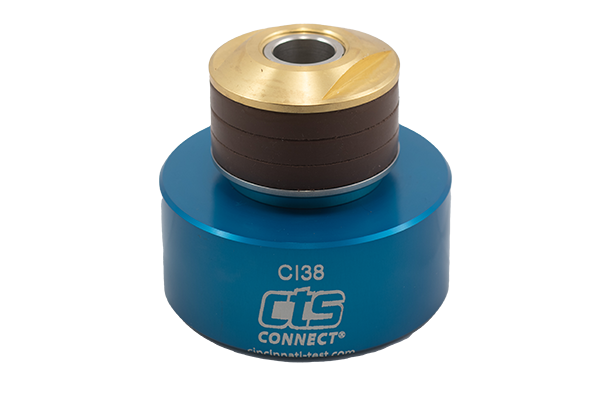

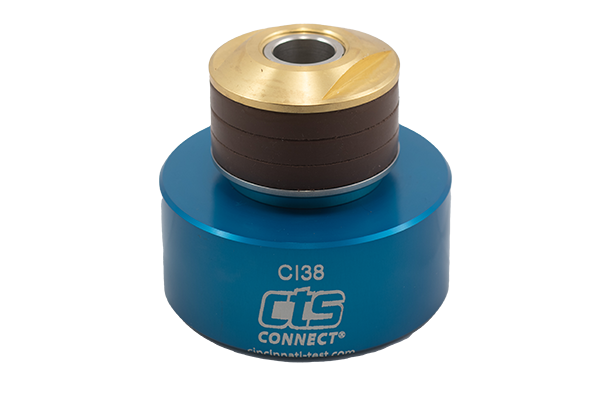

The CI38 pneumactically actuated connector is designed to seal into the inside diameter (ID) of a port, tube, or fitting and is available with a sealing range from 2.585 to 3.005” (65.7 to 76.3). Choose the correct incremental ranges for your application.

CTSConnect:CI38-AA
Seal & Product Type:Std. Length - ID Pneumatic Seal
Sealing Range: 2.585-2.725 in (65.7-69.2 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$1,005
/
