CTSC-001982

CTSC-001982

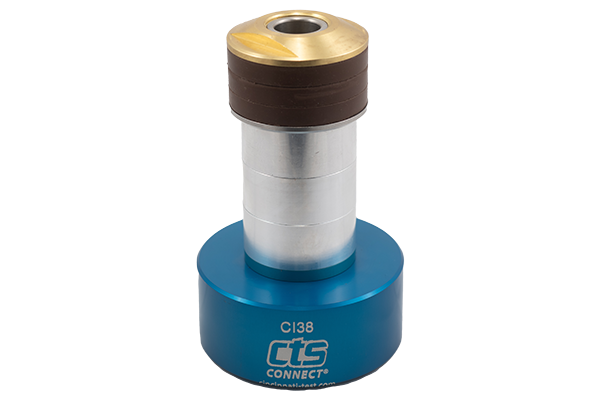

The CI38-AC-E3.0 pneumatically actuated connector with a 3" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 2.865" to 3.005" (72.8 mm to 76.3 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI38-AC-E3.0
Seal Range: 2.865-3.005 in. (72.8-76.3 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$1,495
/
