CTSC-002781

CTSC-002781

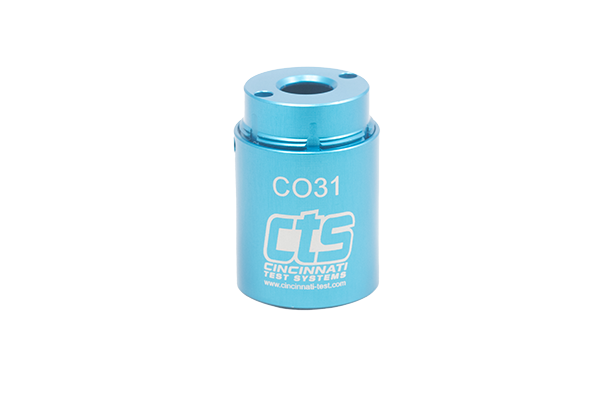

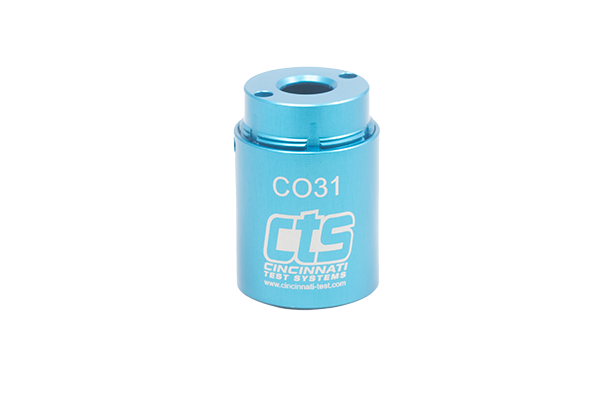

The CO31 Body Only (no main seal kit) is a pneumatically actuated connector designed to seal onto the outside diameter (OD) of a port, tube, or fitting and is available in a variety of sealing ranges from 0.100" to 0.510" (2.5 mm to 13 mm). Choose the correct main seal kit incremental range for your application.

CTS Connect
Accessory: Body Only
Method: Pneumatic
Type: Outside Diameter
Body Size: CO31
Seal Range: 0.1-0.51 in. (2.5-13 mm)
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/16 in. NPT
Construction Materials: Aluminum
Test pressure:Vacuum to 500 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$335
/
