CTSC-002789

CTSC-002789

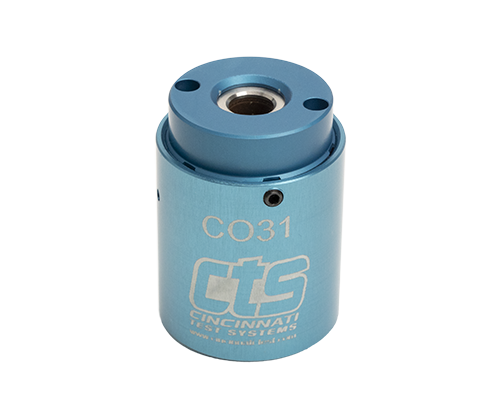

The CO31-AB pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 0.180" to 0.260" (4.6 mm to 6.6 mm).

CTSConnect:CO31-AB
Seal & Product Type:OD Pneumatic Seal
Sealing Range: 0.18-0.26 in. (4.6-6.6 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 500 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$375
/
