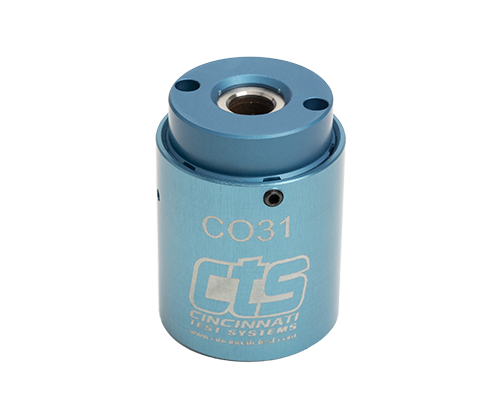

The CO31 pneumactically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting and is available with a sealing range from 0.100 to 0.510” (2.5 to 13 mm). Choose the correct incremental ranges for your application.

CTSConnect:CO31-AC-M
Seal & Product Type:OD Pneumatic Seal
Sealing Range: 0.26-0.34 in (6.6-8.6 mm)
Seal Material:Medical Grade
Test pressures:Vacuum to 500 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$375
/
