CTSC-002811

CTSC-002811

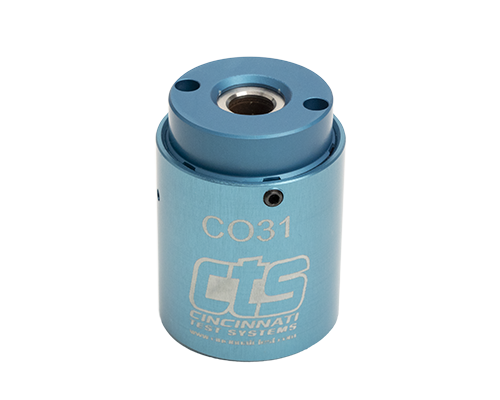

The CO31-AE-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 0.340" to 0.420" (8.6 mm to 10.7 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO31-AE-M
Seal Range: 0.34-0.42 in. (8.6-10.7 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/16 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$375
/
