CTSC-002826

CTSC-002826

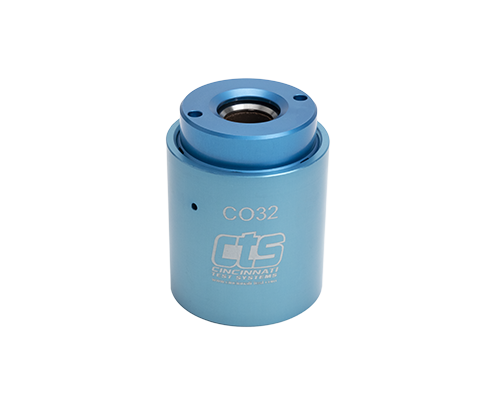

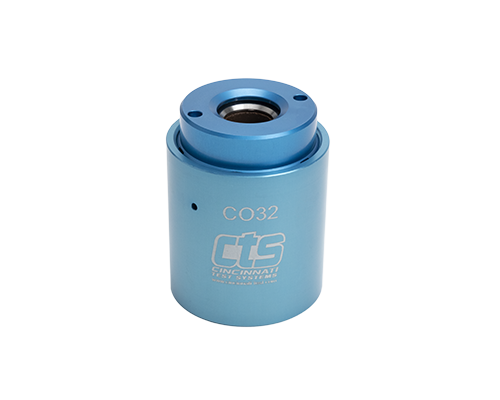

The CO32-AA-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 0.433" to 0.512" (11 mm to 13 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO32-AA-M
Seal Range: 0.433-0.512 in. (11-13 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$470
/
