CTSC-002860

CTSC-002860

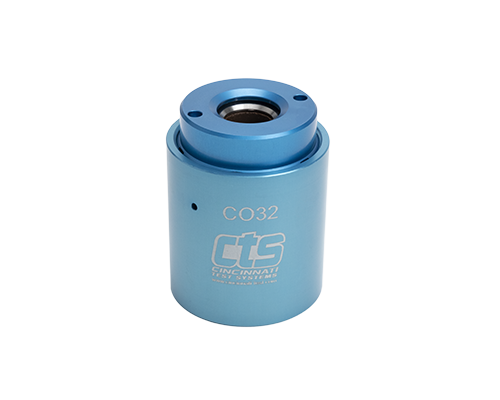

The CO32-AG pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 0.669" to 0.750" (17 mm to 19.1 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO32-AG
Seal Range: 0.669-0.75 in. (17-19.1 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$470
/
