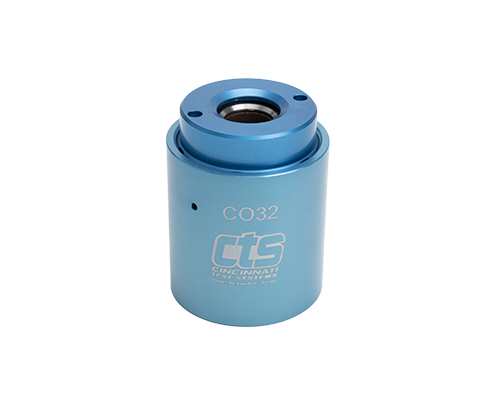

The CO32-AH-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 0.750" to 0.827" (19.1 mm to 21 mm).

CTSConnect:CO32-AH-M
Seal & Product Type:OD Pneumatic Seal
Sealing Range: 0.75-0.827 in. (19.1-21 mm)
Seal Material:Medical Grade
Test pressures:Vacuum to 500 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$470
/
