CTSC-002882

CTSC-002882

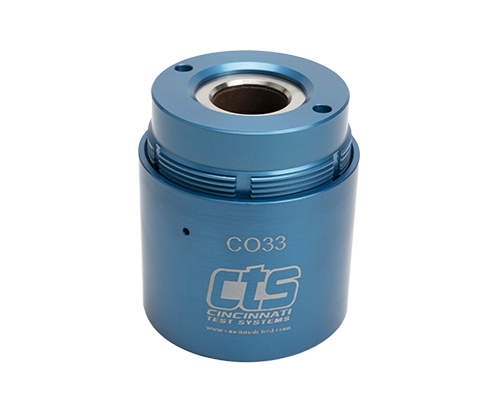

The CO33-AB pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 0.787" to 0.866" (20 mm to 22 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO33-AB
Seal Range: 0.787-0.866 in. (20-22 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 2
Bore Type: Smooth
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$620
/
