CTSC-002917

CTSC-002917

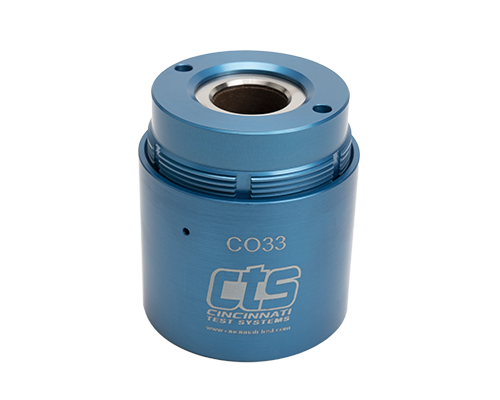

The CO33-AG pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 1.102" to 1.181" (28 mm to 30 mm).

CTSConnect:CO33-AG
Seal & Product Type:OD Pneumatic Seal
Sealing Range: 1.102-1.181 in. (28-30 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 500 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$620
/
