CTSC-002924

CTSC-002924

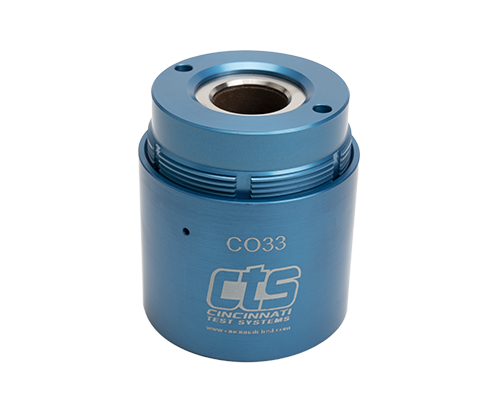

The CO33-AH pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 1.181" to 1.260" (30 mm to 32 mm).

CTSConnect:CO33-AH
Seal & Product Type:OD Pneumatic Seal
Sealing Range: 1.181-1.26 in. (30-32 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 500 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$620
/
