CTSC-002946

CTSC-002946

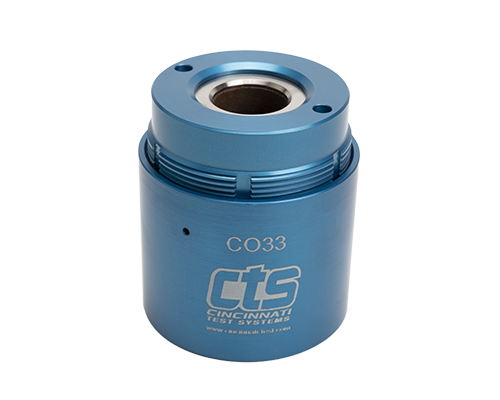

The CO33-AK-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 1.339" to 1.417" (34 mm to 36 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO33-AK-M
Seal Range: 1.339-1.417 in. (34-36 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 2
Bore Type: Smooth
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$620
/
