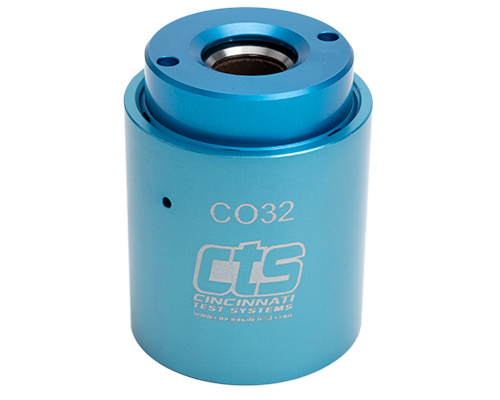

CTSC-003227

The CO32-SAE-0625 pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a 5/8" SAE threaded fitting.

CTS Connect
Method:	Pneumatic
Type:	Outside Diameter
Seal Set:	CO32-SAE-0625
Thread Size:	5/8 in. SAE
Seal Type:	30 Durometer FF - Yellow
Number of Seals:	1
Bore Type:	Threaded
Test Air Connection:	1/4 in. NPT
Pilot Air Connection:	1/8 in. NPT
Construction Materials:	Aluminum, stainless steel
Test pressure:	Vacuum to 500 psig
Pilot pressure:	60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
