CTSC-003413

CTSC-003413

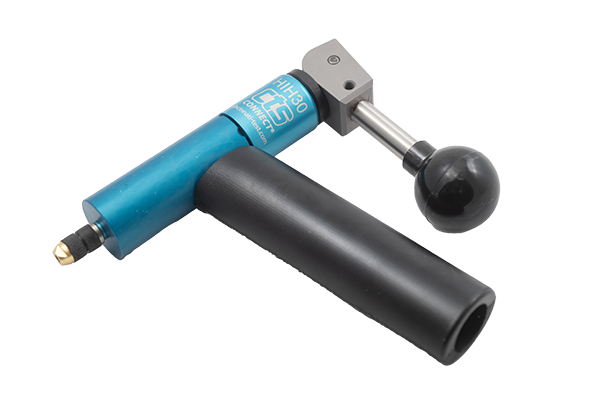

The HIH30-A manually actuated connector is designed with an NPT-threaded fill port that features a comfort-grip handle and seals onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.290" to 0.310" (7.4 mm to 7.9 mm).

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Fill Port & Handle
Seal Set: HIH30-A
Seal Range: 0.29-0.31 in. (7.4-7.9 mm)
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/4 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$525
/
