CTSC-003415

CTSC-003415

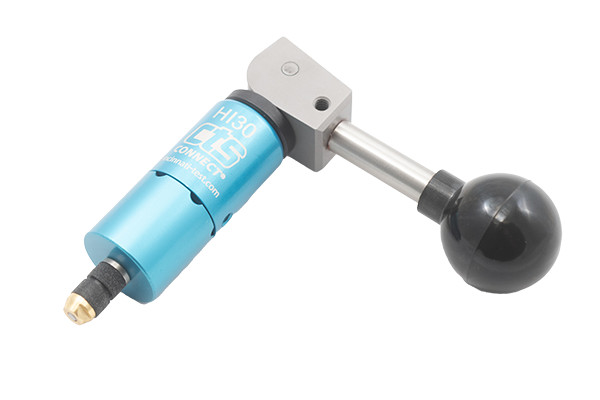

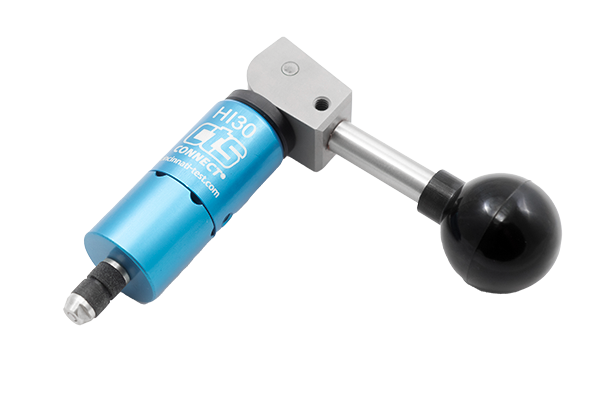

The HI30-A manually actuated connector is designed with a "dead head" seal with no fill port and seals onto the inside diameter (ID) of port, tube, or fitting, offering a sealing range from 0.290" to 0.310" (7.4 mm to 7.9 mm).

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Plug Style
Seal Set: HI30-A
Seal Range: 0.29-0.31 in. (7.4-7.9 mm)
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Smooth
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$360
/
