CTSC-003436

CTSC-003436

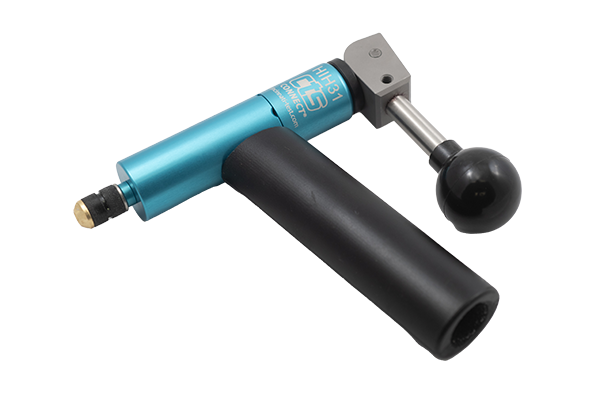

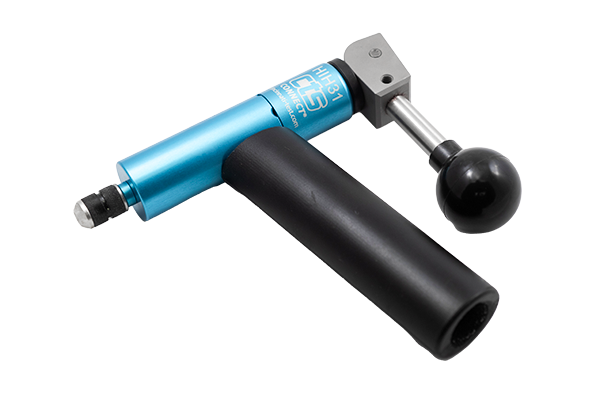

The HIH31-AA manually actuated connector is designed with an NPT-threaded fill port that features a comfort-grip handle and seals onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.394" to 0.433" (10 mm to 11 mm).

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Fill Port & Handle
Seal Set: HIH31-AA
Seal Range: 0.394-0.433 in. (10-11 mm)
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/4 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$525
/
