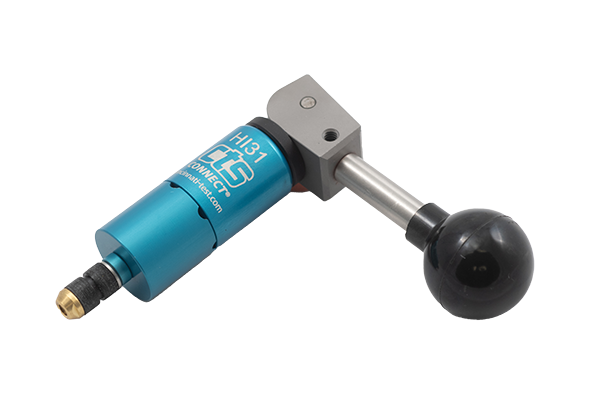

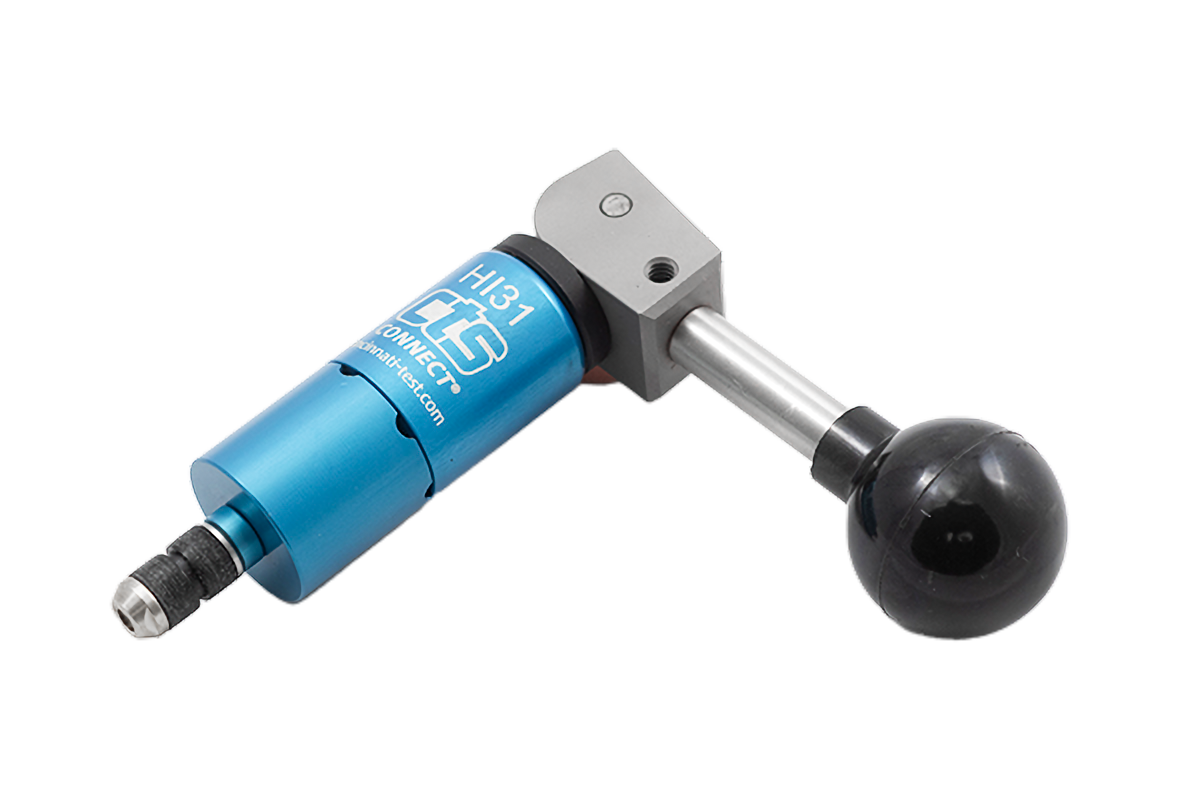

The HI31-AC1 manually actuated connector is designed with a "dead head" seal with no fill port and seals onto the inside diameter (ID) of port, tube, or fitting, offering a sealing range from 0.511" to 0.551" (13 mm to 14 mm).

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Plug Style
Seal Set: HI31-AC1
Seal Range: 0.511-0.551 in. (13-14 mm)
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Smooth
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
