CTSC-003472

CTSC-003472

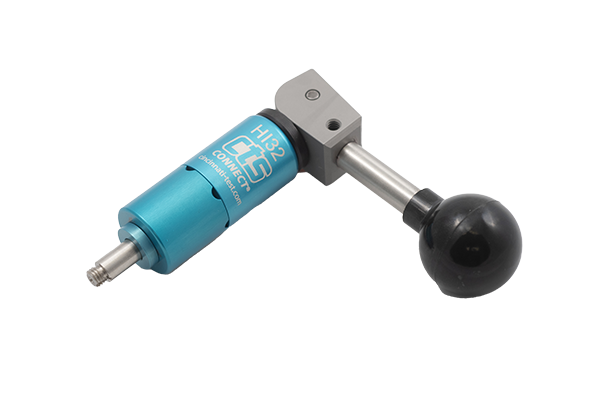

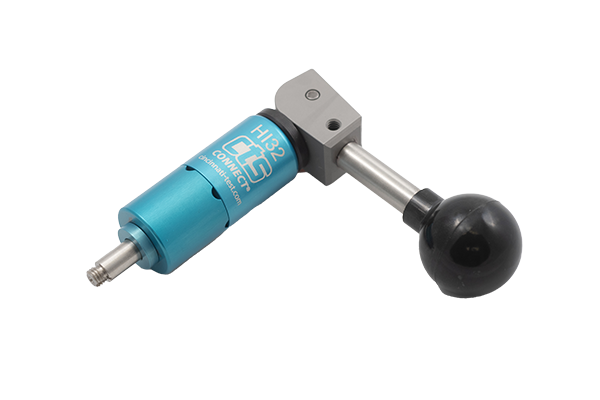

The HI32 Body Only (no main seal kit) is is a manually actuated "dead head" seal with no fill port for sealing onto the inside diameter (ID) of a port, tube, or fitting and is available in a variety of sealing ranges from 0.630" to 0.866" (16 mm to 22 mm). Choose the correct main seal kit range for your application.

CTS Connect
Accessory: Body Only
Method: Manual
Type: Inside Diameter
Body Style: Plug Style
Body Size: HI32
Seal Range: 0.63-0.866 in. (16-22 mm)
Test Air Connection:
Pilot Air Connection:
Construction Materials: Aluminum
Test pressure:Vacuum to 120 psig
Note: CTS suggests a fixed position support for high pressure testing.
$390
/
