CTSC-003475

CTSC-003475

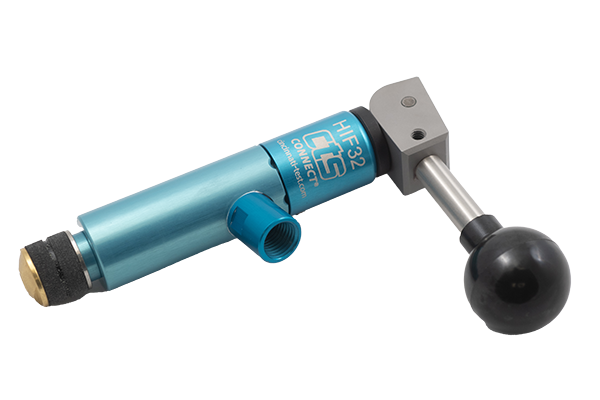

The HIF32-AB1 manually actuated connector is designed with an NPT-threaded fill port and seals onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.669" to 0.709" (17 mm to 18 mm).

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Fill Port
Seal Set: HIF32-AB1
Seal Range: 0.669-0.709 in. (17-18 mm)
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/4 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$505
/
