CTSC-003503

CTSC-003503

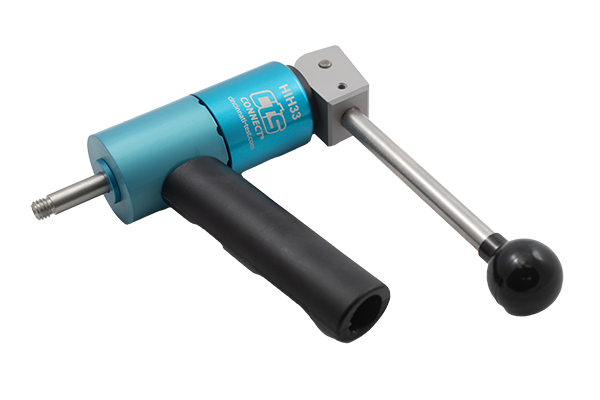

The HIH33 Body Only (no main seal kit) is a manually actuated connector designed with an NPT-threaded fill port that features a comfort-grip handle and seals onto the inside diameter (ID) of a port, tube, or fittingand is available in a variety of sealing ranges from 0.866" to 1.102" (22 mm to 28 mm). Choose the correct main seal kit range for your application.

CTS Connect
Accessory: Body Only
Method: Manual
Type: Inside Diameter
Body Style: Fill Port & Handle
Body Size: HIH33
Seal Range: 0.866-1.102 in. (22-28 mm)
Test Air Connection: 1/4 in. NPT
Pilot Air Connection:
Construction Materials: Aluminum
Test pressure:Vacuum to 120 psig
Note: CTS suggests a fixed position support for high pressure testing.
$675
/
