CTSC-003510

CTSC-003510

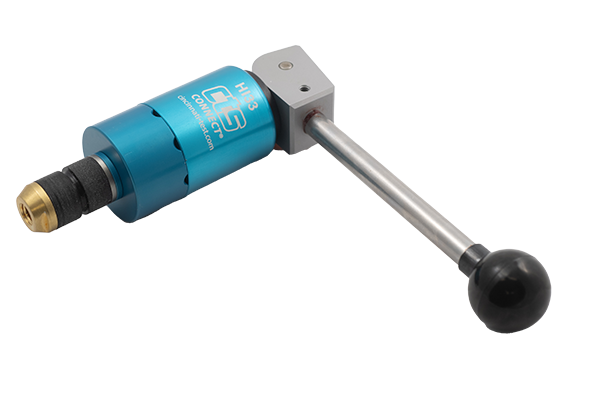

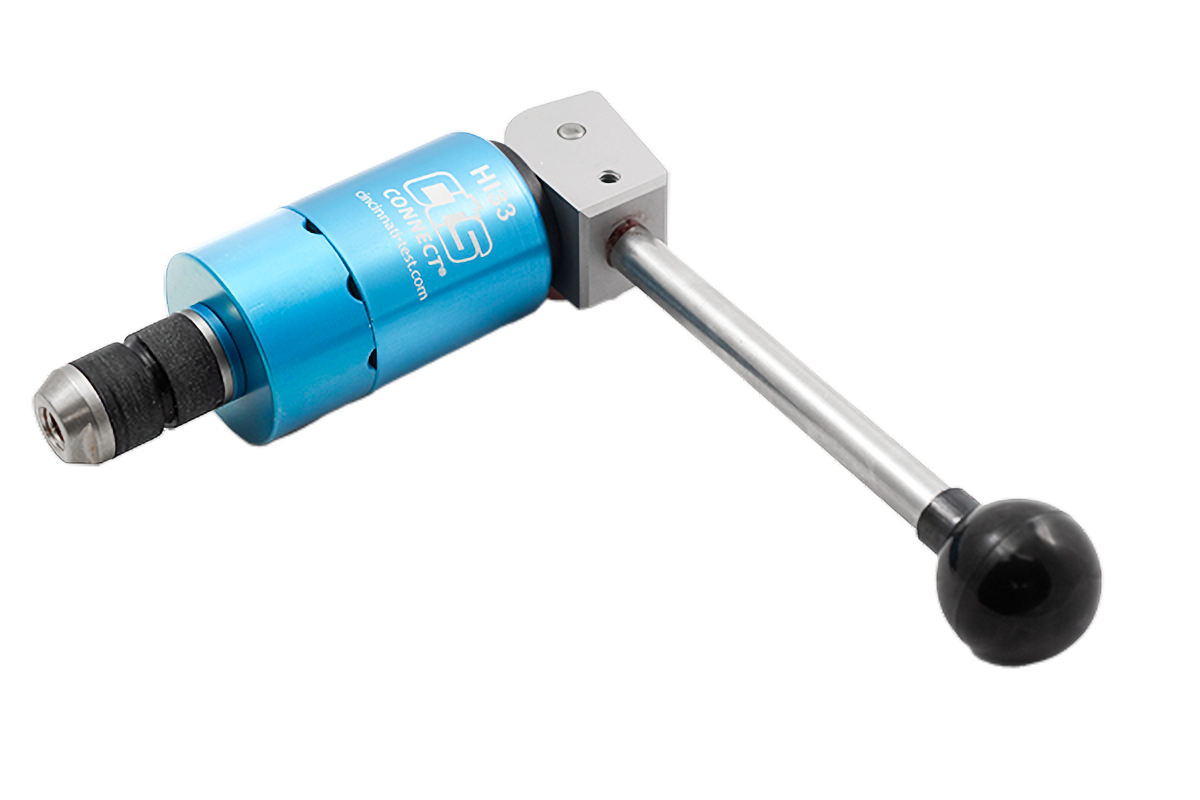

The HI33-AA1 manually actuated connector is designed with a "dead head" seal with no fill port and seals onto the inside diameter (ID) of port, tube, or fitting, offering a sealing range from 0.905" to 0.945" (23 mm to 24 mm).

CTSConnect:HI33-AA1
Seal & Product Type:ID Manual Seal Plug Style
Sealing Range: 0.905-0.945 in. (23-24 mm)
Seal Material:Standard Grade
Test pressures:
Vacuum all finishes
35 PSI on 30 finishes
50 PSI on 65 finishes
75 PSI on 125 finishes
100 PSI on threaded ports
Note: CTS suggests using a tether for high pressure testing on smooth surfaces
$575
/
