CTSC-003525

CTSC-003525

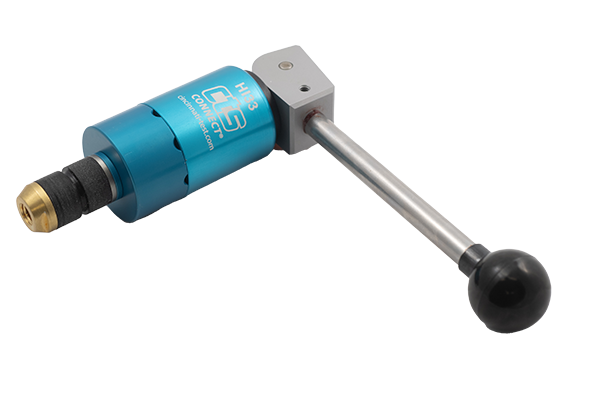

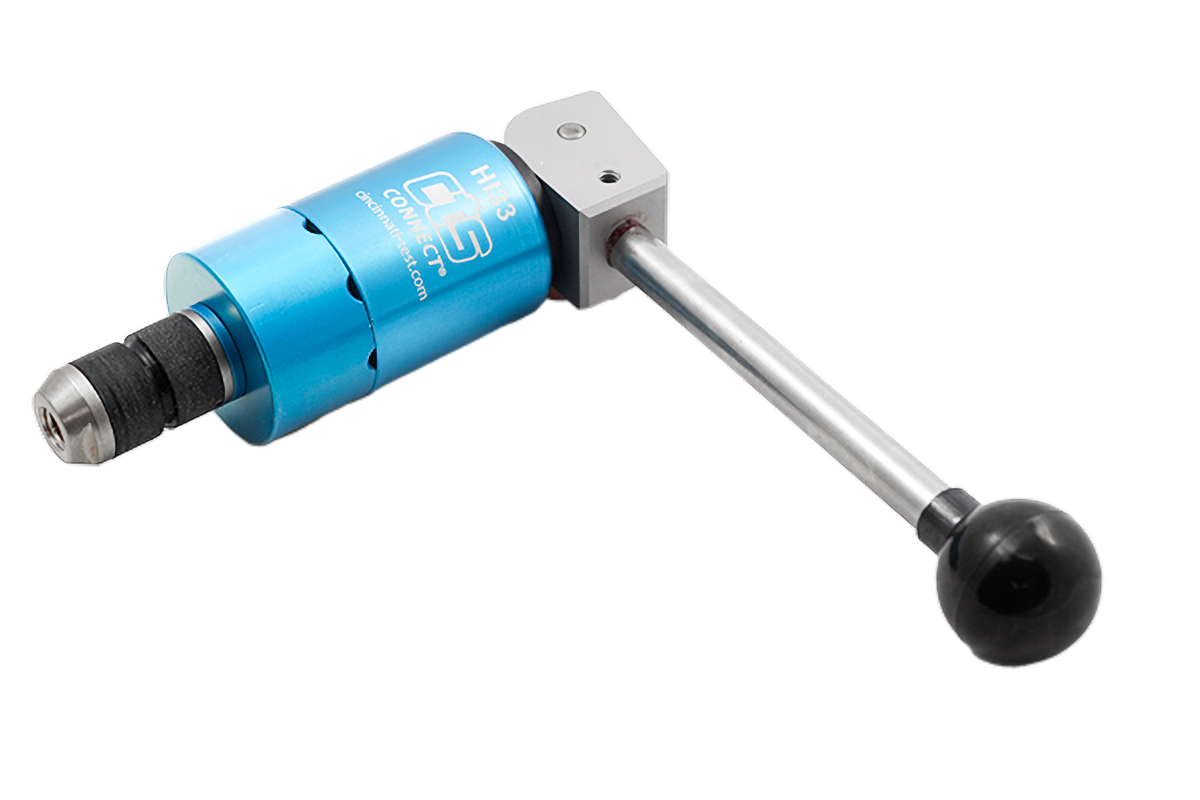

The HI33-AD manually actuated connector is designed with a "dead head" seal with no fill port and seals onto the inside diameter (ID) of port, tube, or fitting, offering a sealing range from 1.024" to 1.063" (26 mm to 27 mm).

CTSConnect:HI33-AD
Seal & Product Type:ID Manual Seal Plug Style
Sealing Range: 1.024-1.063 in. (26-27 mm)
Seal Material:Standard Grade
Test pressures:
Vacuum all finishes
35 PSI on 30 finishes
50 PSI on 65 finishes
75 PSI on 125 finishes
100 PSI on threaded ports
Note: CTS suggests using a tether for high pressure testing on smooth surfaces
$575
/
