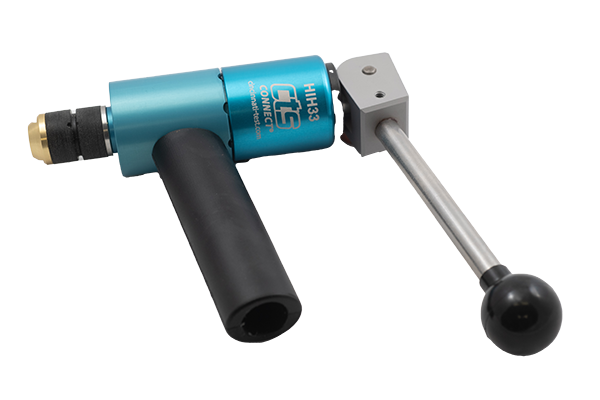

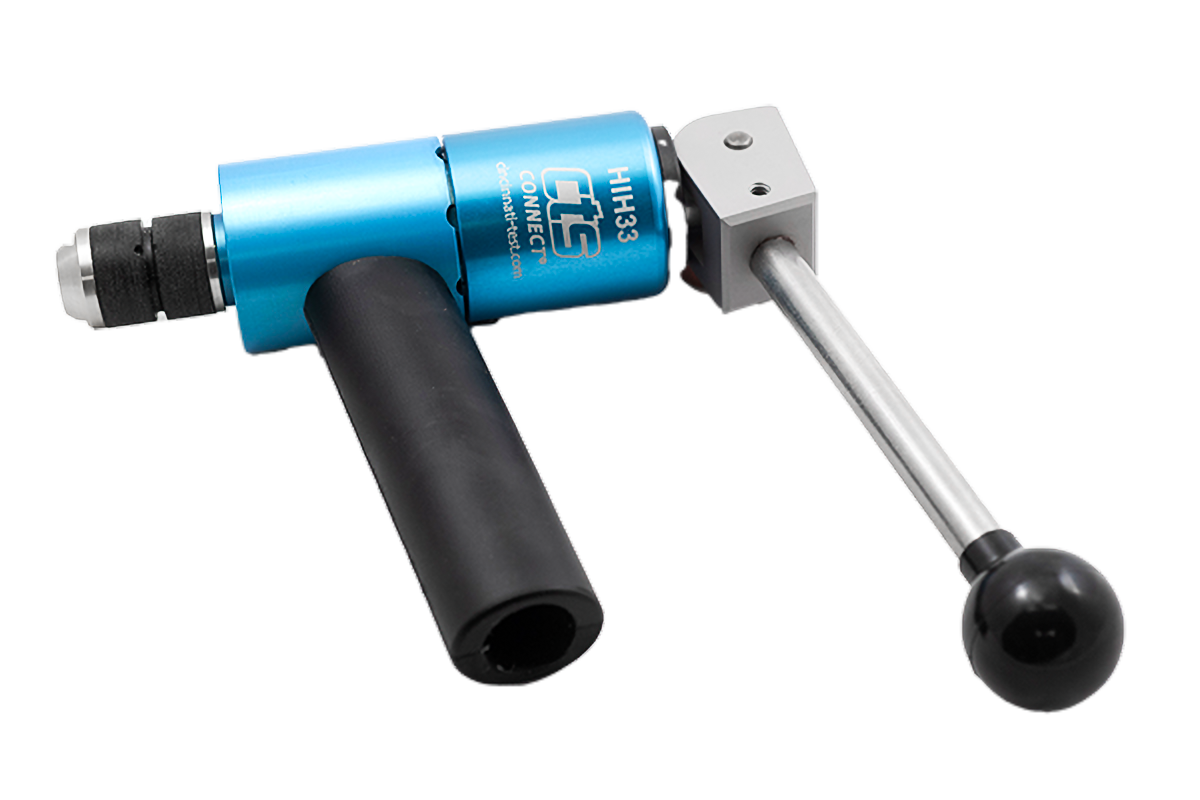

The HIH33-AD1 manually actuated connector is designed with an NPT-threaded fill port that features a comfort-grip handle and seals onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 1.063" to 1.102" (27 mm to 28 mm).

CTSConnect:HIH33-AD1
Seal & Product Type:ID Manual Seal w/ Handle & Fill Port
Sealing Range: 1.063-1.102 in. (27-28 mm)
Seal Material:Standard Grade
Test pressures:
Vacuum all finishes
35 PSI on 30 finishes
50 PSI on 65 finishes
75 PSI on 125 finishes
100 PSI on threaded ports
Note: CTS suggests using a tether for high pressure testing on smooth surfaces
$740
/
