CTSC-003530

CTSC-003530

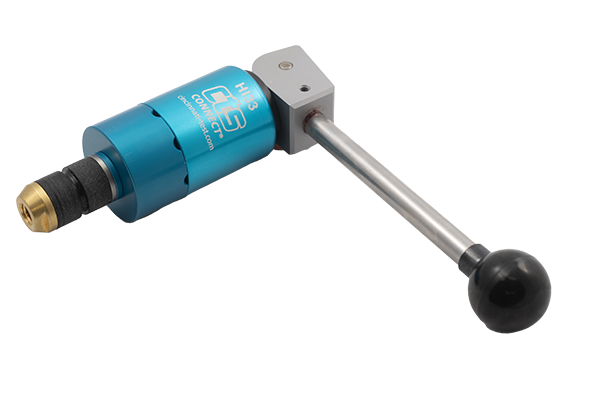

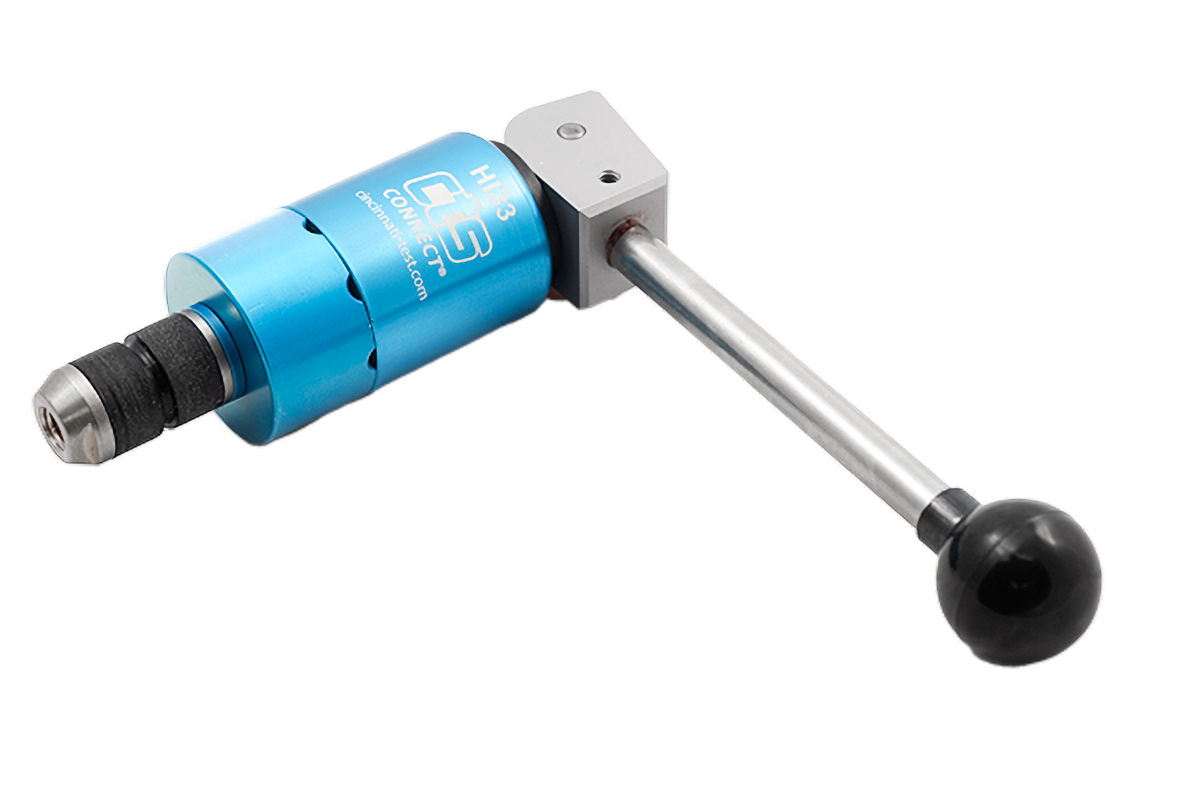

The HI33-AD1 manually actuated connector is designed with a "dead head" seal with no fill port and seals onto the inside diameter (ID) of port, tube, or fitting, offering a sealing range from 1.063" to 1.102" (27 mm to 28 mm).

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Plug Style
Seal Set: HI33-AD1
Seal Range: 1.063-1.102 in. (27-28 mm)
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Smooth
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$575
/
