CTSC-003533

CTSC-003533

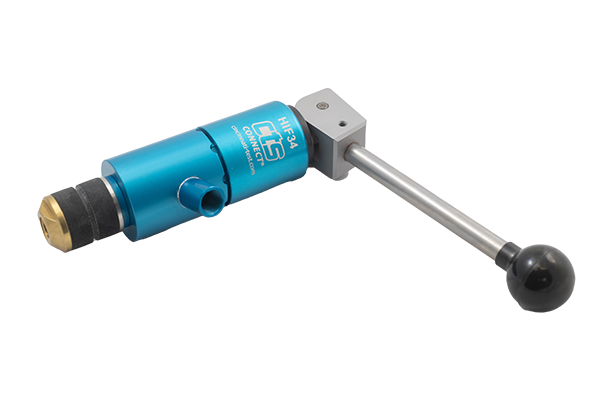

The HIF34-AA manually actuated connector is designed with an NPT-threaded fill port and seals onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 1.102" to 1.141" (28 mm to 29 mm).

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Fill Port
Seal Set: HIF34-AA
Seal Range: 1.102-1.141 in. (28-29 mm)
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/4 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$635
/
