CTSC-003552

CTSC-003552

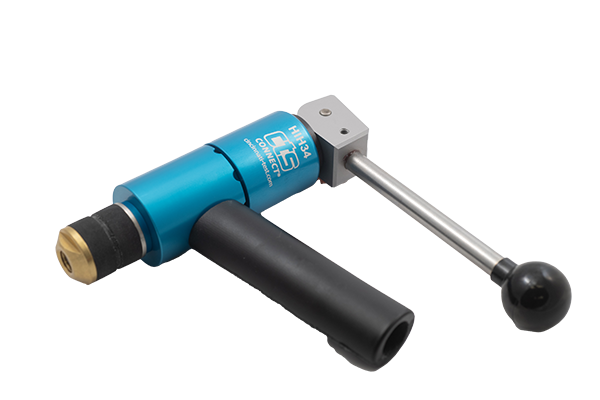

The HIH34-AC1 manually actuated connector is designed with an NPT-threaded fill port that features a comfort-grip handle and seals onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 1.220" to 1.260" (31 mm to 32 mm).

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Fill Port & Handle
Seal Set: HIH34-AC1
Seal Range: 1.22-1.26 in. (31-32 mm)
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/4 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$740
/
