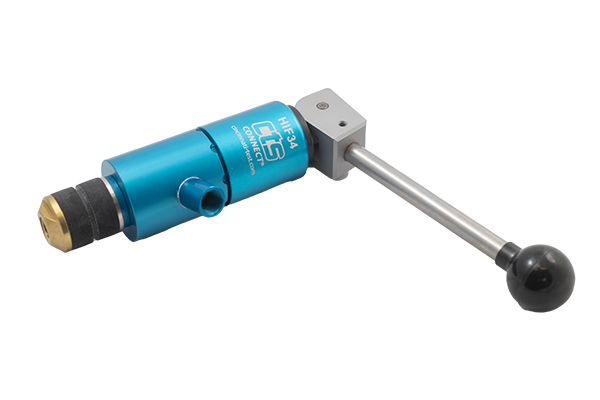

The HIF34-AD manually actuated connector is designed with an NPT-threaded fill port and seals onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 1.260" to 1.299" (32 mm to 33 mm).

CTSConnect:HIF34-AD
Seal & Product Type:ID Manual Seal w/ Fill Port
Sealing Range: 1.26-1.299 in. (32-33 mm)
Seal Material:Standard Grade
Test pressures:
Vacuum all finishes
35 PSI on 30 finishes
50 PSI on 65 finishes
75 PSI on 125 finishes
100 PSI on threaded ports
Note: CTS suggests using a tether for high pressure testing on smooth surfaces
$635
/
