CTSC-003601

CTSC-003601

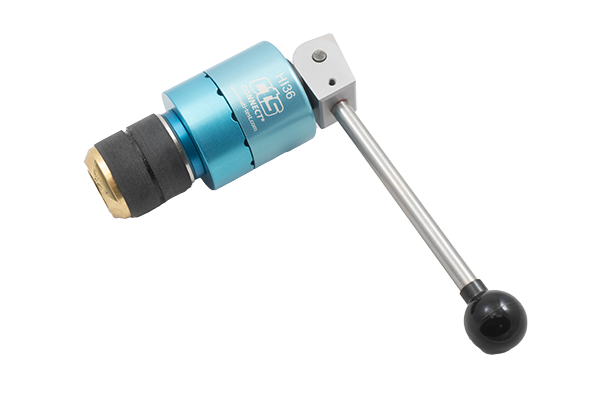

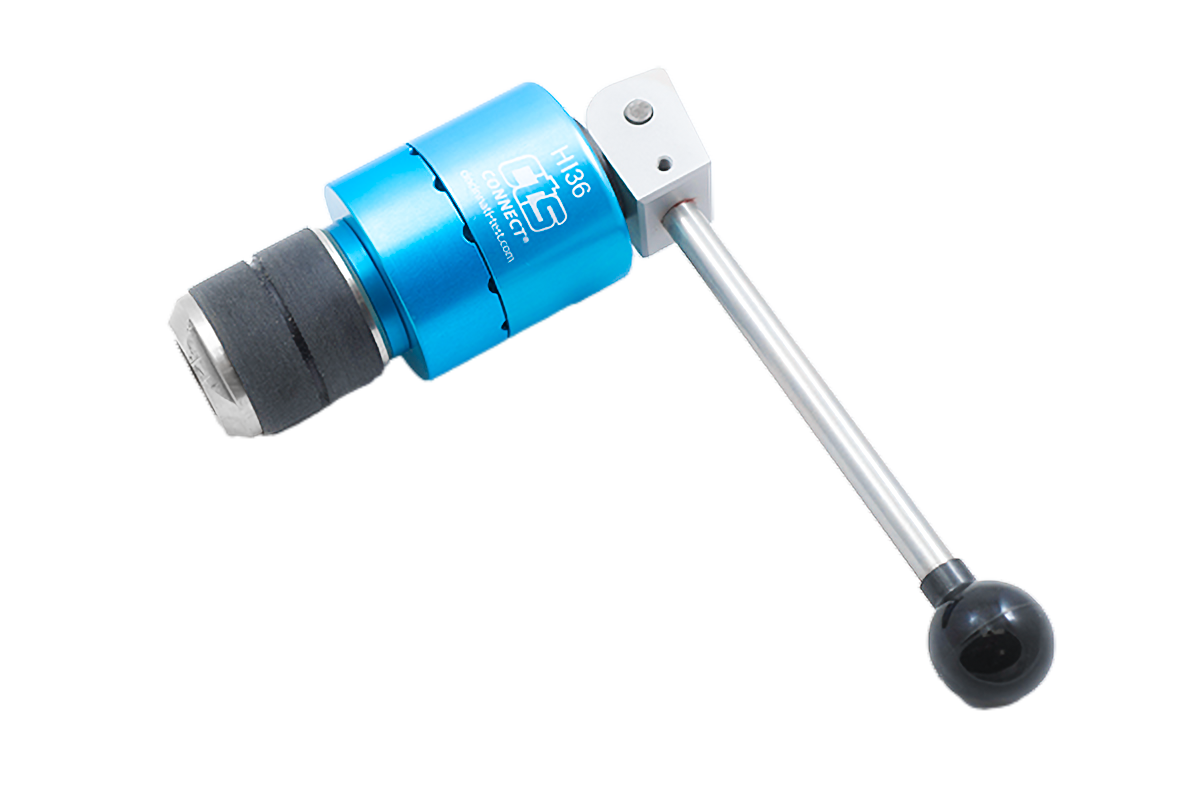

The HI36 Connector is a manually actuated "dead head" seal designed for use with inner diameters of 1.693 in to 2.165 in. (43 to 55 mm). Choose the correct incremental ranges for your application.

CTSConnect:HI36-AA
Seal & Product Type:ID Manual Seal Plug Style
Sealing Range: 1.693-1.771 in (43-45 mm)
Seal Material:Standard Grade
Test pressures:
Vacuum all finishes
35 PSI on 30 finishes
50 PSI on 65 finishes
75 PSI on 125 finishes
100 PSI on threaded ports
Note: CTS suggests using a tether for high pressure testing on smooth surfaces
$705
/
