CTSC-003609

CTSC-003609

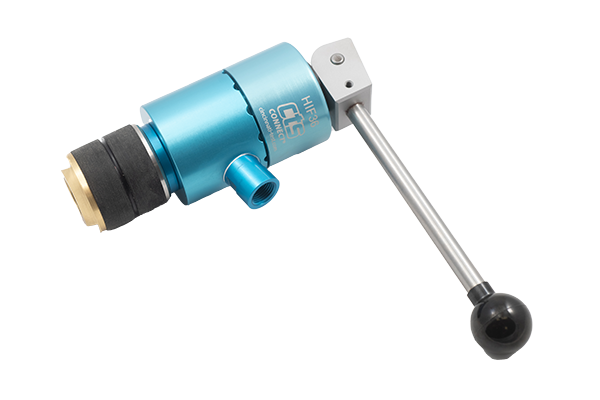

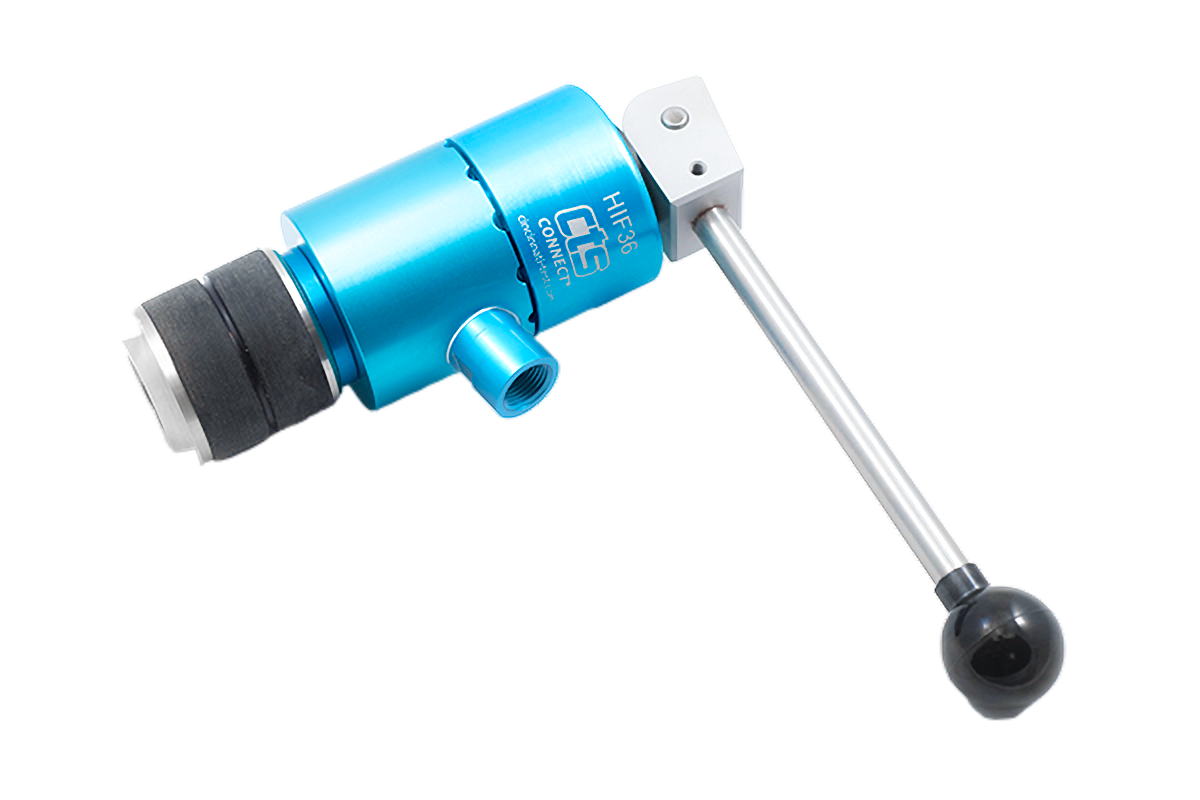

The HIF36-AC manually actuated connector is designed with an NPT-threaded fill port and seals onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 1.850" to 1.929" (47 mm to 49 mm).

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Fill Port
Seal Set: HIF36-AC
Seal Range: 1.85-1.929 in. (47-49 mm)
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 3/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$765
/
