CTSC-003622

CTSC-003622

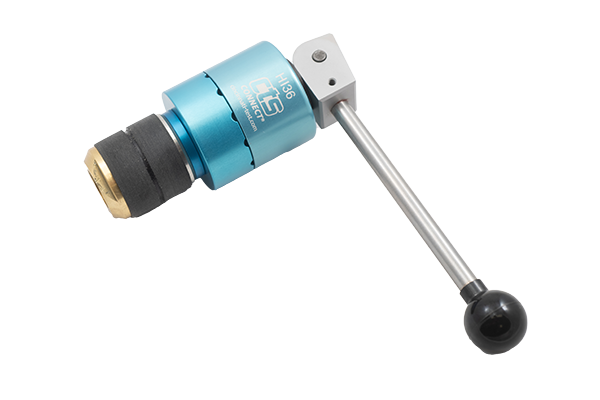

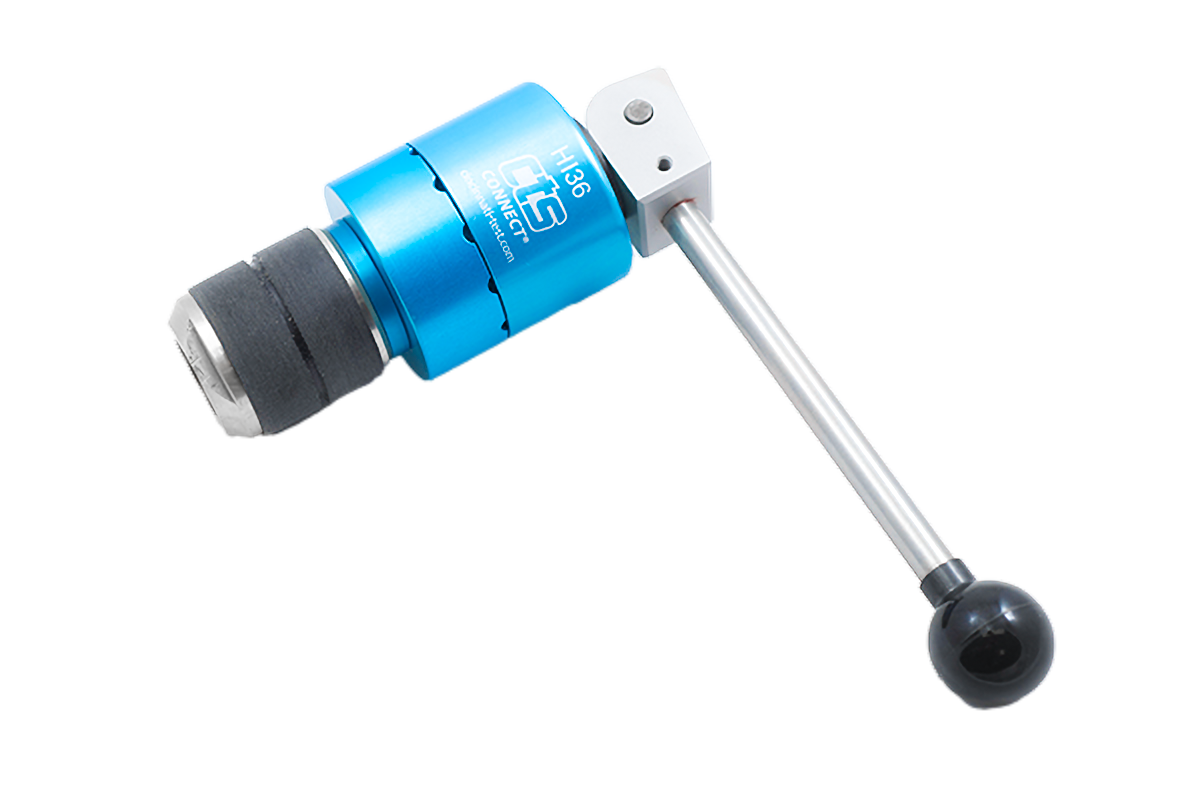

The HI36-AD1 manually actuated connector is designed with a "dead head" seal with no fill port and seals onto the inside diameter (ID) of port, tube, or fitting, offering a sealing range from 2.087" to 2.165" (53 mm to 55 mm).

CTSConnect:HI36-AD1
Seal & Product Type:ID Manual Seal Plug Style
Sealing Range: 2.087-2.165 in. (53-55 mm)
Seal Material:Standard Grade
Test pressures:
Vacuum all finishes
35 PSI on 30 finishes
50 PSI on 65 finishes
75 PSI on 125 finishes
100 PSI on threaded ports
Note: CTS suggests using a tether for high pressure testing on smooth surfaces
$705
/
