CTSC-003625

CTSC-003625

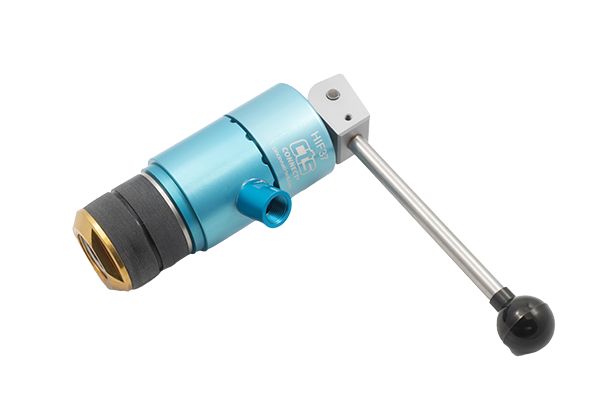

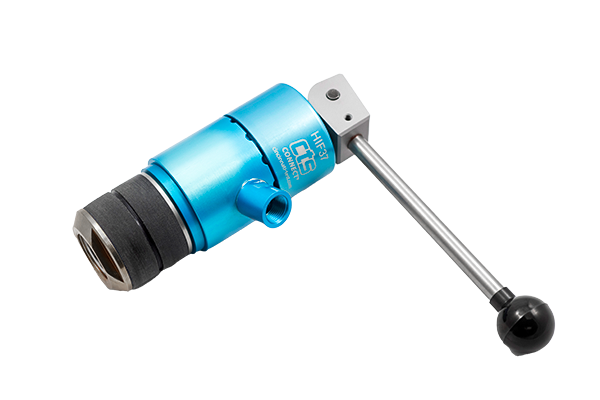

The HIF37-AA manually actuated connector is designed with an NPT-threaded fill port and seals onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 2.165" to 2.244" (55 mm to 57 mm).

CTSConnect:HIF37-AA
Seal & Product Type:ID Manual Seal w/ Fill Port
Sealing Range: 2.165-2.244 in. (55-57 mm)
Seal Material:Standard Grade
Test pressures:
Vacuum all finishes
35 PSI on 30 finishes
50 PSI on 65 finishes
75 PSI on 125 finishes
100 PSI on threaded ports
Note: CTS suggests using a tether for high pressure testing on smooth surfaces
$905
/
