CTSC-003775

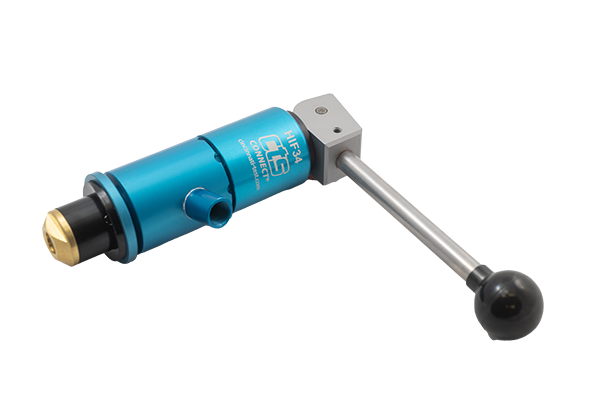

The HIF34-M33 manually actuated connector is designed an NPT-threaded fill port and seals onto the inside diameter (ID) of an M33 threaded fitting.

CTS Connect
Method:	Manual
Type:	Inside Diameter
Body Style:	Fill Port
Seal Set:	HIF34-M33
Thread Size:	M33
Seal Type:	55 Durometer Rubberized Urethane - Black
Number of Seals:	1
Bore Type:	Threaded
Test Air Connection:	1/4 in. NPT
Construction Materials:	Aluminum, stainless steel
Test pressure:	Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
