CTSC-003861

CTSC-003861

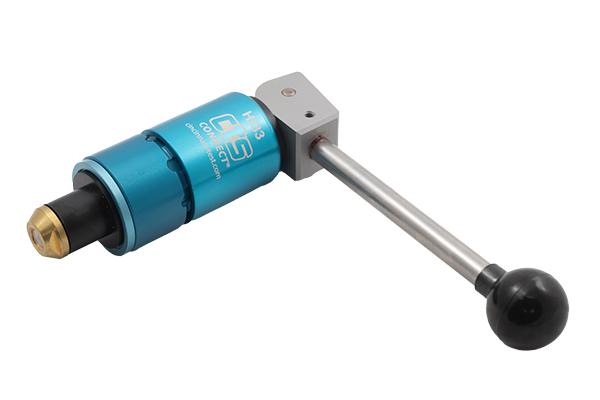

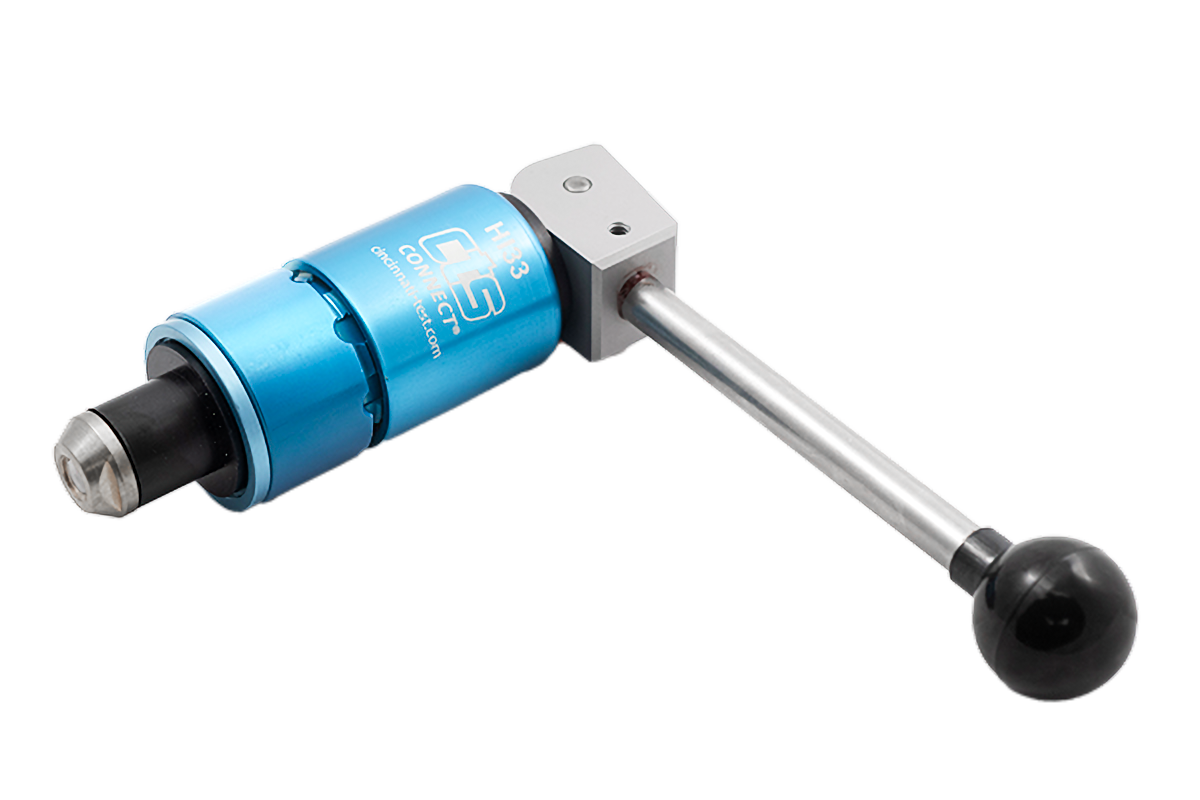

The HI33-SAE-1062 manually actuated connector is designed with a "dead head" seal with no fill port and seals onto the inside diameter (ID) of a 1-1/16" SAE threaded fitting.

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Plug Style
Seal Set: HI33-SAE-1062
Thread Size: 1-1/16 in. SAE
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Threaded
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$575
/
