CTSC-003933

CTSC-003933

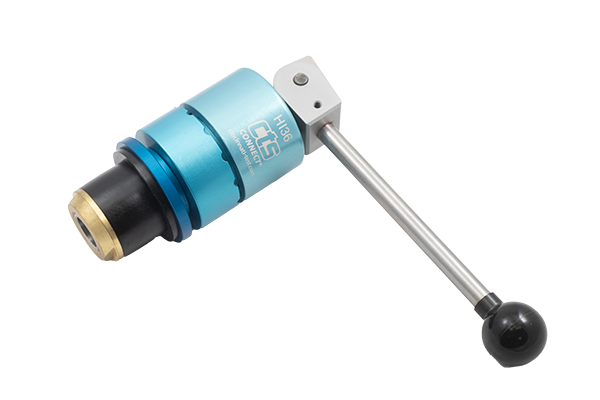

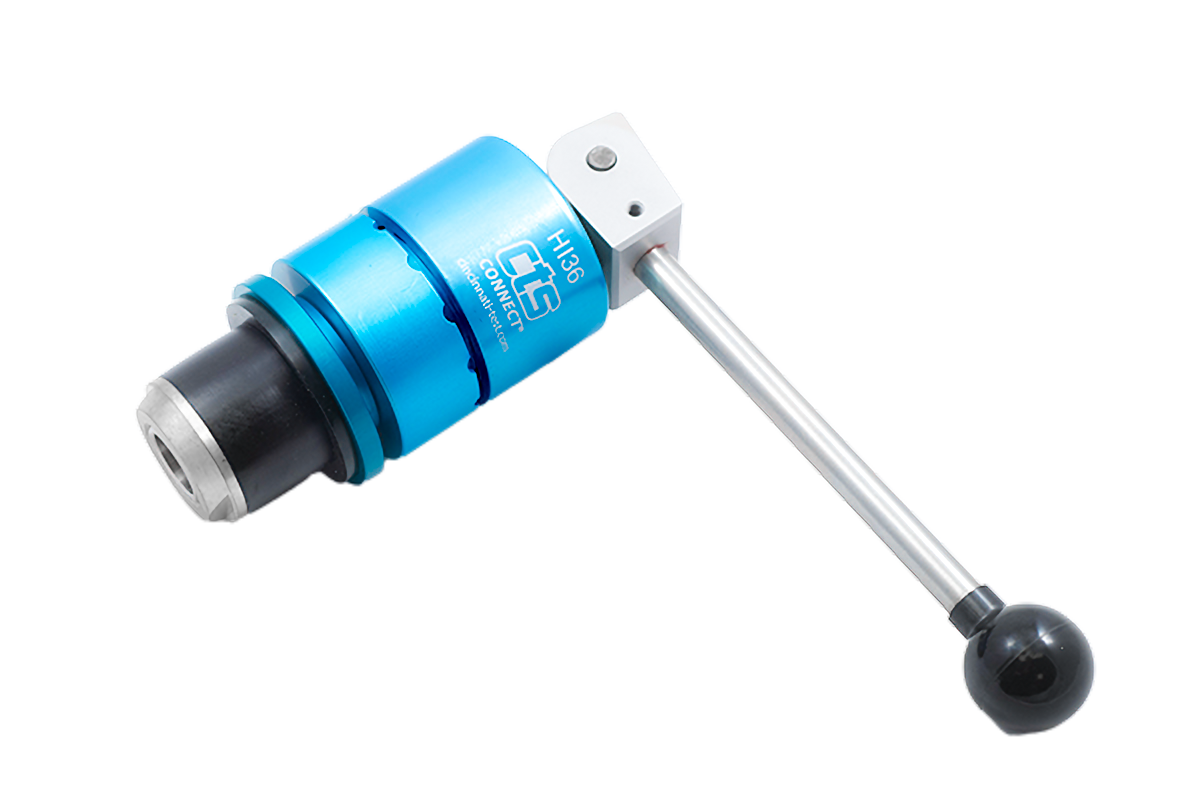

The HIF36-SAE-2000 manually actuated connector is designed an NPT-threaded fill port and seals onto the inside diameter (ID) of a 2" SAE threaded fitting.

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Fill Port
Seal Set: HIF36-SAE-2000
Thread Size: 2 in. SAE
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Threaded
Test Air Connection: 3/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$765
/
